Perforce Defect Tracking Integration Project


Perforce Defect Tracking Integration Administrator's Guide

Richard Brooksby, Ravenbrook Limited, 2000-08-10

Contents

1. Introduction

This manual is the Perforce Defect Tracking Integration Administrator's Guide. It explains how to install, configure, maintain, and administer the Perforce Defect Tracking Integration (P4DTI).

This document is intended for P4DTI administrators. Ordinary users of the defect tracker or Perforce should read the Perforce Defect Tracking Integration User's Guide. (For ideas on how to train your users on the P4DTI, see section 8, "Training and documentation".)

This guide does not describe the basics of using the P4DTI, Perforce, or the defect tracker. Read the Perforce Defect Tracking Integration User's Guide to understand the P4DTI from a user's perspective.

2. Overview of the P4DTI

2.1. Installation, configuration, and maintenance

To install and run the P4DTI, you must:

  1. Get and install the required software (section 3).
  2. Ensure you have met the procedural prerequisites for Perforce and your defect tracker (section 3).
  3. Download and install the P4DTI software (section 4).
  4. Configure the P4DTI software (section 5).
  5. Migrate defect tracking data from your defect tracker to the integrated system (section 6).
  6. Test the installation (section 7).
  7. Train the users (section 8).
  8. Go live (section 9).
  9. Maintain the installation (section 9).

2.2. How the P4DTI works

The P4DTI works by taking over the job tracking system of Perforce and making the defect tracker's records appear as Perforce jobs. Perforce users can work with jobs more or less as described in the Perforce manuals, and their changes are reflected in the defect tracker. For more information on how Perforce handles jobs, see the Perforce Command Line User's Guide.

Perforce has a mechanism for linking jobs to changelists (the p4 fix command), to enable you to record the work done for a particular reason. The P4DTI makes these links appear in the defect tracker, making it easy to see what was done or is currently being done to resolve a defect.

The P4DTI replicator is a process that copies data between a defect tracker and a Perforce server to keep each one up to date with changes made in the other. This approach allows developers to do their routine defect resolution work entirely from their Perforce client, without using the defect tracker's interface. It also allows developers to relate their changes to defect tracking issues.

Figure 1 shows how the replicator communicates with the defect tracking server and the Perforce server.

The replicator maintains a one-to-one relationship between issues in the defect tracker's database and jobs in the Perforce repository. (An issue is a unit of work that the defect tracker tracks; some examples are bugs, change requests, and enhancement requests.) In other words, each issue has a corresponding job, and vice versa. The replicator keeps the contents of a configurable set of fields in the defect tracker's issues the same as the contents of the corresponding Perforce job, so that editing one edits the other.

The replicator also copies Perforce's links between jobs and changelists (called "fixes") to the defect tracker's database, and makes them visible in the defect tracker's user interface. Replication of links from Perforce to the defect tracker makes it possible to track, record, and check a number of things; in particular, it makes it possible to track and record the changes made for each issue, and find out why a change was made in terms of issues.

The replicator polls the defect tracking server and the Perforce server at regular intervals to get a list of recent changes, and attempts to propagate these changes to the other system. If a defect tracker issue is changed at the same time as the corresponding Perforce job, the replicator sends an e-mail with the overwritten Perforce job data to the following people:

Most defect trackers have an idea of workflow--a set of rules that control who can do what to which issues. The replicator enforces the defect tracker's workflow by rejecting changes to jobs in Perforce that are illegal in the defect tracker. When it comes across such a change, it undoes the change and sends an e-mail message to the user.

The defect tracker manages the defect tracker records (and therefore the job contents), while Perforce manages the changelists. Neither side controls the "fixes" relationship--the links between jobs and changelists.

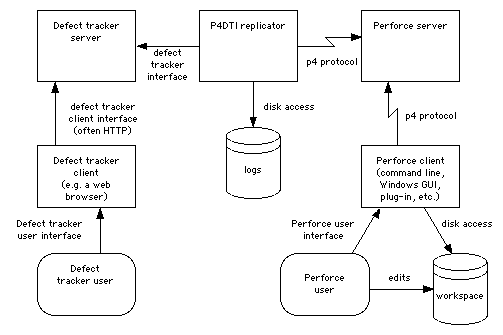

Figure 1 shows how the replicator connects to the Perforce and defect tracker servers.

Figure 1. The replication architecture

Diagram of the replication architecture

2.3. Limitations: will the P4DTI work for your organization?

The P4DTI won't work well for every organization. In particular, it has the following limitations:

3. Prerequisites for installing the P4DTI

3.1. Required experience

To administer the P4DTI, you must have the following experience:

3.2. Perforce prerequisites

3.2.1. Software prerequisites

Before installing the P4DTI, you must obtain and install the following software:

  1. Perforce server software of version 2000.2 or later. You can download server and client upgrades from the Perforce FTP server at <ftp://ftp.perforce.com/pub/perforce/>. Be sure to read the release notes (available from <http://www.perforce.com/>) before you install. Contact Perforce technical support if you need help.
  2. Perforce client software of version 2001.1 or later for every P4DTI user who uses Perforce, and for the P4DTI itself.
  3. Perforce licenses for every defect tracker user who is going to work in Perforce.
  4. A background user license for the replicator. This is a license for an automatic process, rather than a person. Perforce provides background licenses free of charge; contact Perforce Customer Service to get one.

3.2.2. Procedural prerequisites

Before installing the P4DTI, you must do the following:

  1. Back up your Perforce repository. For instructions, see the Perforce System Administrator's Guide.
  2. Copy out of Perforce any jobs that you want to keep. The P4DTI takes over the jobs subsystem of Perforce and rewrites the Perforce jobspec, and you must delete all jobs from your Perforce repository as part of configuring the P4DTI. For more information, see section 5.2.3, "Deleting Perforce jobs". You might want to enter any active jobs into the defect tracking system.
  3. Determine the address and port number of your Perforce server. You will need this information when you configure the P4DTI in section 5, "Configuring the P4DTI, Perforce, and the defect tracker".

It is possible to keep existing issues that are stored in Perforce jobs. Migration submits all the Perforce job data to the defect tracker, so that the issues can be replicated back to Perforce, and so appear in both systems. This requires more experience of Perforce and some Python programming. See section 4, "Migrating to the defect tracker from Perforce jobs", of the Perforce Defect Tracking Integration Advanced Administrator's Guide.

3.3. TeamTrack prerequisites

3.3.1. Software prerequisites

Before installing the P4DTI, you must obtain and install the following software:

  1. TeamTrack version 4.5, 5.0, or 5.5. Use of TeamTrack versions before 5.5 is deprecated. TeamTrack is available for download from TeamShare's web site <http://www.teamshare.com/>. Note that TeamTrack 5.01 and 5.02 are not supported: you should upgrade to TeamTrack 5.5.
  2. TeamTrack licenses for every Perforce user who will create or own issues.
  3. An extra TeamTrack license for the replicator. TeamShare provides licenses free of charge for this purpose. Contact your TeamShare sales representative to get one.
  4. Python 2.0 for Windows, installed on the TeamTrack server machine. Python 2.0 is available from <http://www.ravenbrook.com/project/p4dti/import/2000-10-18/Python-2.0/BeOpen-Python-2_0.exe>. The TeamTrack integration will not work with Python versions other than 2.0.
  5. The Python interface to Windows, installed on the TeamTrack server machine. This is available from <http://www.ravenbrook.com/project/p4dti/import/2001/python-win32all-138/win32all-138.exe>. You can omit this step if you don't plan to do either of the following:

3.3.2. Procedural prerequisites

Before installing the P4DTI, you must do the following:

  1. Back up your TeamTrack database. For instructions, see the TeamTrack Administrator Manual for your version of TeamTrack.
  2. Obtain Administrator-level access to the TeamTrack server machine.
  3. Ensure you have at least 5MB of free disk space for the P4DTI, plus space for logs.
  4. Ensure that your TeamTrack users do not have TeamShare's SourceBridge plug-in installed. SourceBridge prevents the P4DTI from working properly.
  5. Ensure that your TeamTrack server is not running on a secure web server (that is, the URL to connect to TeamTrack starts with http:, not https:). The P4DTI does not support TeamTrack running on a secure web server.
  6. Check the workflows defined in your TeamTrack database to make sure that they are compatible with the P4DTI. In particular:
    1. Make sure you don't have two states with the same name in a project. For example, when using the workflow in figure 2, there's no way for a developer using Perforce to resolve the issue and assign it to the tester. The developer would normally resolve the issue by changing the status field, but in this workflow the status field doesn't change. Rename states so that the workflow has unique state names. For example, in figure 2, name the second "Assigned" state "Resolved".

      Figure 2. Workflow with two states with the same name

      Workflow with two states with the same
name
    2. Make sure you don't have two transitions between the same two states, in the same direction. For example, when using the workflow in figure 3, when the developer using Perforce changes the state of the job from "assigned" to "resolved", the P4DTI has no way to work out which transition to apply. Simplify the workflow so that the transition can be deduced from the start state and the end state. For example, in figure 3 you could have a single transition from "Assigned" to "Resolved" and require developers to specify how they resolved the problem in a field in the defect.

      Figure 3. Workflow with two transitions between the same two states (in the same direction)

      Workflow with two transitions between the
same two states (in the same direction)
    3. Make sure you don't have "Update" transitions (transitions from a state to itself) that are necessary in your workflow. For example, when using the workflow in figure 4, there's no way for the developer to cause the "Assign to tester" transition using Perforce. The developer would normally resolve the issue by changing the status field, but in this workflow the status field doesn't change. Simplify the workflow so that it doesn't rely on "Update" transitions.

      Figure 4. Workflow with a necessary "Update" transition

      Workflow with a necessary
"Update" transition

    In fact these problems only matter when the problematic part of the workflow needs to be carried out in Perforce. As long as you know that the problematic part of workflow is only carried out in TeamTrack, then the P4DTI will work fine.

  7. Ensure that the workflows defined in your TeamTrack database do not require more than one transition in quick succession from Perforce. The P4DTI can't infer more than one transition at once. To avoid this problem, design your workflow only with only single steps in Perforce. This is usually straightforward: developers using the Perforce interface only need to transition issues from, for example, "assigned" to "closed", and not through a series of states.
  8. Ensure that your users have the same e-mail address in TeamTrack and in Perforce; see section 3.5, "Matching users".

3.4. Bugzilla prerequisites

3.4.1. Software prerequisites

Before installing the P4DTI, you must obtain and install the following software:

  1. Bugzilla 2.10, 2.12, 2.14, 2.14.1, 2.14.4 or 2.16.1. Use of versions prior to 2.14.4 or 2.16.1 is deprecated. On Windows, only Bugzilla 2.14.4 is supported.

    You can download Bugzilla 2.14.4 from <http://www.ravenbrook.com/project/p4dti/import/2002-09-30/bugzilla-2.14.4/bugzilla-2.14.4.tar.gz>, or Bugzilla 2.16.1 from <http://www.ravenbrook.com/project/p4dti/import/2002-09-30/bugzilla-2.16.1/bugzilla-2.16.1.tar.gz>.

    Installing Bugzilla on Windows is a complex procedure requiring changes to the Bugzilla sources -- see section 3.6, "Win32 Installation Notes" of the Bugzilla Guide [Bugzilla 2002-09-30].

    Note: If you've changed your Bugzilla code, see section 5.4.1, "Patching Bugzilla".

  2. MySQL 3.22.19 or later. You must be using Bugzilla with this database manager. Note that Bugzilla itself may not work with MySQL 3.23.29.

  3. Python 1.5.2 or later, installed on the P4DTI server machine. On Windows, you will require Python 2.0 or later.

    An RPM of Python 1.5.2 for RedHat Linux 7.3 is available from <http://www.ravenbrook.com/project/p4dti/import/1999-04-13/python-1.5.2/python-1.5.2-38.i386.rpm>. An RPM of Python 1.5.2 for RedHat Linux 6.2 is available from <http://www.ravenbrook.com/project/p4dti/import/1999-04-13/python-1.5.2/python-1.5.2-13.i386.rpm>.

    Python 2.0 for Windows is available from <http://www.ravenbrook.com/project/p4dti/import/2000-10-18/Python-2.0/BeOpen-Python-2_0.exe>.

    Python 1.5.2 sources are available from <http://www.ravenbrook.com/project/p4dti/import/1999-04-13/python-1.5.2/python-1.5.2.tar.gz>. If you build Python from the sources, note that the P4DTI requires the optional syslog module.

  4. The MySQLdb Python package, release 0.2.2 to 0.9.1, installed on the P4DTI server machine. (MySQLdb releases before 0.2.2 are known to be incompatible with the P4DTI; MySQLdb releases after 0.9.1 haven't been tested.)

    An RPM of MySQLdb 0.9.1 for RedHat Linux 7.3 is available from <http://www.ravenbrook.com/project/p4dti/import/2001-10-16/MySQL-python-0.9.1/MySQL-python-0.9.1-1.i386.rpm>.

    On Windows, you need MySQL-Python 0.9.1 for Win32 and Python 2.0. This is available from <http://www.ravenbrook.com/project/p4dti/import/2001-10-16/MySQL-python-0.9.1/MySQL-python-0.9.1.win32-py2.0.exe>.

    MySQLdb 0.9.1 sources are available from <http://www.ravenbrook.com/project/p4dti/import/2001-10-16/MySQL-python-0.9.1/MySQL-python-0.9.1.tar.gz>.

  5. (On Windows only) The Python interface to Windows, installed on the P4DTI server machine. This is available from <http://www.ravenbrook.com/project/p4dti/import/2001/python-win32all-138/win32all-138.exe>. You can omit this step if you don't plan to do either of the following:

3.4.2. Procedural prerequisites

Before installing the P4DTI, you must do the following:

  1. Back up your Bugzilla database. For instructions, see the MySQL manual (under "Database Backups", section 21.2 at the time of writing).
  2. Back up your Bugzilla code. As part of P4DTI installation, you must apply a patch to Bugzilla (for details, see section 5.4.1, "Patching Bugzilla"). A backup of your Bugzilla code is useful if you need to uninstall the P4DTI.
  3. Ensure that you have at least 2MB of free disk space on the Bugzilla server machine for the P4DTI, plus space for logs.
  4. Ensure that your users have the same e-mail address in Bugzilla and in Perforce; see section 3.5, "Matching users".

3.5. User accounts

You must ensure that the P4DTI can work out how users in the defect tracker correspond to users in Perforce, as follows:

  1. Create an account in each system for each user who needs to use the integrated system.

    If you are using Bugzilla, create a Bugzilla account for every user in Perforce.

    If you are using TeamTrack, then you must make sure that every Perforce user who needs to edit or fix defects has an account in TeamTrack. (If you're short of licenses, then there's no need for other TeamTrack users to have accounts in Perforce, or for Perforce users who don't do defect resolution to have accounts in TeamTrack.)

  2. Make sure that each user has the same e-mail address in the defect tracker and in Perforce. The P4DTI uses e-mail address to match up users between the two systems.

    (This is necessary in the Bugzilla integration where your e-mail address is used as your userid. In the TeamTrack integration this allows the P4DTI to work in organizations where users have been assigned different userids in the two systems.)

    The P4DTI supports Bugzilla's "emailsuffix" feature (once you've applied the Bugzilla patch, section 5.4.1, and turned on the P4DTI extensions in Bugzilla, section 5.4.3), so if you have "emailsuffix" set to "@company.domain", then the user "joe" in Bugzilla will match a user in Perforce with the e-mail address "joe@company.domain".

There are three problems that can occur if the P4DTI can't match up users properly:

To help you prevent these problems, each time you start the P4DTI it sends an e-mail message to the administrator containing a report listing the unmatched and duplicate users. An example report is shown in figure 5. Read reports you receive and fix the problems.

Figure 5. Example e-mail sent when the P4DTI starts

Date: Tue, 2 Oct 2001 15:26:12 +0100 (BST)
From: p4dti-replicator0@company.domain
To: P4DTI administrator <p4dti-admin@company.domain>
Subject: (P4DTI-8669)  The P4DTI replicator has started.

(P4DTI-8658)  This is an automatically generated e-mail from the Perforce Defect
Tracking Integration replicator 'replicator0'.

(P4DTI-8669)  The P4DTI replicator has started.
1
(P4DTI-867X)  The following Perforce users do not correspond to defect tracker
users.  The correspondence is based on the e-mail addresses in the defect
tracker and Perforce user records.

(P4DTI-6302)  These Perforce users will appear in TeamTrack as the user (None).
It will not be possible to assign issues to these users.

  User   E-mail address
  -----------------------
  nickb  nickb@client
2
(P4DTI-8705)  The following defect tracker users do not correspond to Perforce
users.  The correspondence is based on the e-mail addresses in the defect
tracker and Perforce user records.

(P4DTI-6299)  These TeamTrack users will appear as themselves in Perforce even
though there is no such Perforce user.

  User  E-mail address
  ------------------------
  nb    nb@company.domain
3
(P4DTI-6379)  These Perforce users have duplicate e-mail addresses.  They may
have been matched with the wrong TeamTrack user.

  User  E-mail address
  ------------------------
  root  ndl@company.domain
  ndl   ndl@company.domain
4
(P4DTI-6368)  These TeamTrack users have duplicate e-mail addresses.  They may
have been matched with the wrong Perforce user.

  User   E-mail address
  ------------------------
  admin  rb@company.domain
  rb     rb@company.domain

Notes on figure 5:

  1. Section 1 lists Perforce users that couldn't be matched to a user in the defect tracker (here TeamTrack). Here the user hasn't set their e-mail address in Perforce: they still have the default.

  2. Section 2 lists defect tracker users that couldn't be matched to a user in Perforce.

  3. Section 3 lists Perforce users with duplicate e-mail addresses. In this case, if a defect tracker user had the address <ndl@company.domain> then the P4DTI may have matched them wrongly. Give each Perforce user a distinct e-mail address.

  4. Section 4 lists defect tracker users with duplicate e-mail addresses. Give each defect tracker user a distinct e-mail address.

4. Installing the P4DTI

Note: You might want to practice installing and configuring the P4DTI using a test Perforce repository and a test defect tracking database before you try it with your real data. A copy of your real Perforce repository would be ideal; for instructions on how to make a copy of your repository, see the Perforce System Administrator's Guide.

The P4DTI can be installed on any machine that can communicate with the defect tracker's server and the Perforce server. To keep administration simple and reduce network traffic, install and run the P4DTI on the same machine as the defect tracker's server. The rest of this manual assumes that you do this.

4.1. Upgrading from an earlier version

For instructions on how to upgrade from an earlier version of the P4DTI, see the readme.txt file.

4.2. Windows installation

The P4DTI is distributed as a self-extracting executable called p4dti-DT-RELEASE.exe (where DT is the defect tracker, such as "teamtrack", and RELEASE is the release number, such as "1.0.2").

To install the P4DTI, run this executable on the machine where the defect tracker server is installed. The installer unpacks the P4DTI into C:\Program Files\P4DTI-RELEASE\ by default.

4.3. Linux installation

The P4DTI is distributed as an RPM called p4dti-RELEASE-1.i386.rpm where DT is the defect tracker, such as "bugzilla", and RELEASE is the release number, such as "1.0.2").

To install the P4DTI, run the following command as root on the defect tracker server machine:

rpm -i p4dti-RELEASE-1.i386.rpm

This installs the P4DTI files into /opt/p4dti and a startup script in the /etc/rc.d/init.d directory.

If you prefer not to use RPMs, you can follow the procedure in section 4.4, "Solaris installation".

4.4. Solaris installation

The P4DTI is distributed as a gzipped tar file called p4dti-DT-RELEASE.tar.gz (where DT is the defect tracker, such as "bugzilla", and RELEASE is the release number, such as "1.0.2").

To install the P4DTI, unpack this tar file on the defect tracker server machine, using the following command:

gunzip -c p4dti-DT-RELEASE.tar.gz | tar xvf -

You must determine where to put the files. You can put the files wherever you want.

5. Configuring the P4DTI, Perforce, and the defect tracker

Work through the subsections in the order in which they appear. Do not attempt to run the P4DTI until you have reached the end of this section, or you might end up with a non-working installation.

To configure the P4DTI with Perforce and your defect tracker, you must:

  1. Specify the location of servers and the data you want to appear in Perforce (section 5.1).
  2. Configure Perforce to accept information from the replicator and, optionally, install triggers to implement access controls (section 5.2).
  3. Enable P4DTI features, such as the ability to view fixes and changelists from the defect tracker user interface (section 5.3 for TeamTrack or section 5.4 for Bugzilla).
  4. Start the replicator (section 5.5).
  5. Set up the replicator to start automatically when the server machine is rebooted (section 5.6).

5.1. P4DTI configuration

To configure the P4DTI, you edit definitions of Python variables in the file config.py in the installation directory. Edit these definitions according to the notes below. All variables in the file must have a value.

5.1.1. Essential configuration parameters

dt_name

Description: The name of the defect tracking system you're integrating with. Either "TeamTrack" or "Bugzilla".

Example: "TeamTrack"

Make sure that this variable is set to the appropriate value for your defect tracker.

administrator_address

Description: The e-mail address of the P4DTI administrator.

Example: "p4dti-admin@company.domain"

The replicator sends error reports to this address. If this is None, then the replicator never sends e-mail.

p4_port

Description: The address and port of the Perforce server with which the replicator communicates.

Example: "perforce.company.domain:1666"

p4_user

Description: The userid that the replicator uses to log in to the Perforce server.

Example: "p4dti-replicator0"

For information about how the replicator logs in to Perforce, see section 5.2, "Perforce configuration". If you want to add more replicators later, incorporate the replicator identifier (rid) into this userid.

p4_password

Description: The password the replicator uses to log in to the Perforce server. If there is no password, specify "" (empty quotes).

Example: ""

For information about how the replicator logs in to Perforce, see section 5.2, "Perforce configuration".

replicator_address

Description: The e-mail address from which the replicator sends e-mail. This address is used in the "From" field of e-mail that the replicator sends.

Example: "p4dti-replicator0@company.domain"

To make it easier for users to get assistance, make this address an alias for the administrator e-mail address (administrator_address). If you are using Bugzilla, this e-mail address is also used for the replicator's Bugzilla account; see section 5.4.2, "Creating a Bugzilla user for the replicator".

smtp_server

Description: The address of the SMTP server that the replicator uses to send e-mail.

Example: "smtp.company.domain"

If this is None, then the replicator never sends e-mail.

If you need to run the P4DTI without being connected to a network (for example, if you want to set it up on a laptop so that you can give a demonstration), set smtp_server=None so that the replicator doesn't try to send e-mail.

start_date

Description: The starting point in time for replication.

Example: "2001-02-10 00:00:00"

Issues modified after this date are replicated; issues unchanged after this date are ignored. Must be a string in the form "YYYY-MM-DD HH:MM:SS".

5.1.2. TeamTrack configuration parameters

teamtrack_version

Description: The major version of your TeamTrack server. Specify "4.5" for TeamTrack 4.5, or "5.0" for TeamTrack 5.0 or later.

Example: "5.0"

closed_state

Description: The TeamTrack that maps to the "closed" state in Perforce. Specify None if you want the ordinary state mapping rules to apply.

(Note that you must write None literally, not the string "None", which would mean the state called "None").

Example: "Resolved".

Mapping the TeamTrack state that developers use most often to the "closed" state in Perforce makes using the P4DTI easier for the developers, because the Perforce user interfaces make it easier to fix a job to "closed" than any other state. However, if your workflow already has a state called "Closed", then you can't use this feature; set closed_state = None.

replicated_fields

Description: A list of the database names of TeamTrack fields that are replicated in Perforce. The fields STATE, OWNER, and TITLE are always replicated, so omit those fields when setting this variable.

Example: ["DESCRIPTION", "PRIORITY", "SEVERITY"]

For advice on which fields to replicate, and how to find out their database names, see section 5.1.5, "Choosing which fields to replicate".

teamtrack_server

Description: The TeamTrack server hostname and (optionally) port with which the replicator communicates.

Example: "teamtrack.company.domain"

If your TeamTrack server is reached on a path other than /tmtrack/tmtrack.dll? then you must specify the full path to the server in this variable. For example, "http://server.company.domain/infosystem/teamtrack/tmtrack.dll?".

(Note that "localhost" won't work, even if the TeamTrack server is on the local host.)

teamtrack_user

Description: The user name that the replicator uses to log into TeamTrack.

Example: "P4DTI-replicator0"

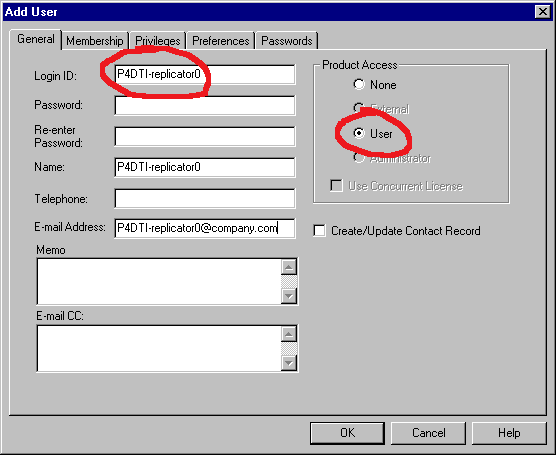

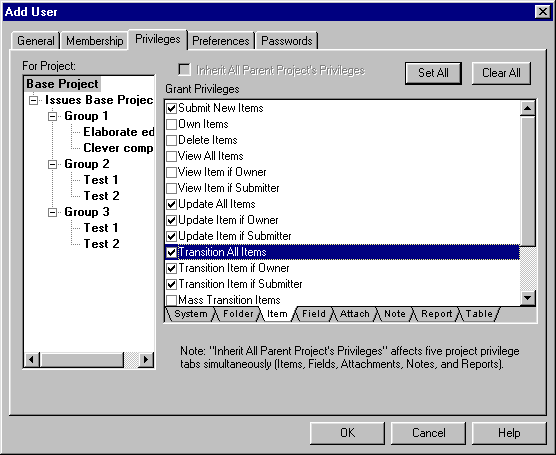

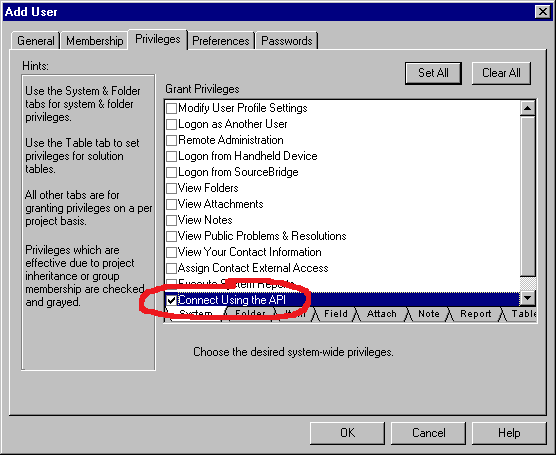

See section 5.3.2, "Creating a TeamTrack user for the replicator".

teamtrack_password

Description: The password that the replicator uses to log into TeamTrack. If there is no password, specify "" (empty quotes).

Example: ""

See section 5.3.2, "Creating a TeamTrack user for the replicator".

5.1.3. Bugzilla configuration parameters

closed_state

Description: The Bugzilla state that maps to the "closed" state in Perforce. Specify None if you want the ordinary state mapping rules to apply.

(Note that you must write None literally, not the string "None", which would mean the state called "None").

Example: "RESOLVED".

Mapping the defect tracker state that developers use most often to the "closed" state in Perforce makes using the P4DTI easier for the developers, because the Perforce user interfaces make it easier to fix a job to "closed" than any other state. If you specify a closed_state then the "CLOSED" state in Bugzilla maps to "bugzilla_closed" in Perforce.

replicated_fields

Description: A list of the names of Bugzilla fields that are replicated in Perforce. The fields "bug_status", "short_desc", "assigned_to" and "resolution" are always replicated, so omit those fields when setting this variable.

Example: ["longdesc", "priority", "bug_severity", "product"]

For advice on which fields to replicate, see section 5.1.5, "Choosing which fields to replicate".

dbms_host

Description: The host on which the Bugzilla MySQL server is running.

Example: "localhost"

Set this value to "localhost" if the P4DTI and the Bugzilla MySQL server run on the same machine.

dbms_port

Description: The port number on the database host (dbms_host), on which the Bugzilla MySQL server listens.

Example: 3306

MySQL normally listens on port 3306. Change this setting only if you have set up MySQL differently. Note that this parameter is expressed as a number, not as a string.

dbms_database

Description: The name of the MySQL database in which Bugzilla stores its data.

Example: "bugs"

Normally set to "bugs" during Bugzilla installation (see the Bugzilla documentation for 2.10, 2.12, 2.14, 2.14.1, 2.14.4, 2.16.1). Change this setting only if you have set up Bugzilla differently.

dbms_user

Description: The user name that the replicator uses to log in to MySQL to use the Bugzilla database.

Example: "bugs"

Bugzilla normally logs in to MySQL as user "bugs" (see the Bugzilla documentation for 2.10, 2.12, 2.14, 2.14.1, 2.14.4, 2.16.1). Change this setting only if you have configured Bugzilla differently, or if you want to set up the replicator to log in as a different user.

dbms_password

Description: The password that the replicator uses to log in to MySQL to use the Bugzilla database.

Example: ""

Bugzilla normally logs in with no password (see the Bugzilla documentation for 2.10, 2.12, 2.14, 2.14.1, 2.14.4, 2.16.1). Change this setting if you have configured Bugzilla differently, or you want to set up the replicator to log in as a different user and use a password.

bugzilla_directory

Description: The directory in which Bugzilla is installed, or None if you don't want e-mail processed.

Example: "/home/httpd/html/bugzilla"

Bugzilla sends e-mail to its users when it notices that a bug has been changed. If the P4DTI is running on the Bugzilla server, it is able to use Bugzilla's processmail script to promptly send e-mail in the same way. This configuration parameter allows the P4DTI to locate processmail. Set it to None if the P4DTI is not running on the Bugzilla server or if you don't want the P4DTI to send these e-mail messages.

5.1.4. Other configuration parameters

These parameters support advanced or rarely-used features. Most organizations can leave these parameters at their default values, at least to start with, and then set them later if necessary.

changelist_url

Description: A format string used to build a URL for a changelist. Specify None if there are no URLs for changelists.

This is used by the defect tracker to provide a link from a fix to a web page providing more information about the changelist that fixed the issue. Figure 6 shows how this works in Bugzilla.

The value must be a format string valid for passing to sprintf(); it must have one %d format specifier, for which the change number is substituted. (Note that because the value gets passed to sprintf(), you must double other percent signs.)

In order to use this feature, you must have a web application that can provide information about changelists. Applications suitable for this include:

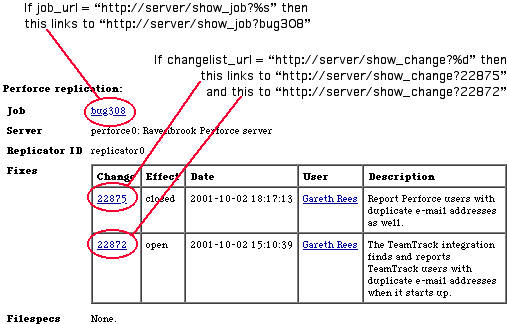

Figure 6. Effect of changelist_url and job_url

Figure showing the effect of the
changelist_url and job_url configuration parameters on the fixes table
in Bugzilla.

job_url

Description: A format string used to build a URL for job descriptions. Specify None if there is no URL for job descriptions.

This is used by the defect tracker to provide a link from an issue to a web page providing more information about the job that corresponds to the issue. Figure 6 shows how this works in Bugzilla.

Example: "http://info.company.domain/cgi/perfbrowse.cgi?@job+%s"

The string is a format string valid for passing to sprintf(); it must have one %s format specifier, for which the job name is substituted. (Note that because it gets passed to sprintf(), you must double other percent signs.)

log_file

Description: The name of the replicator's log file. If None, messages aren't logged to any file. (Note that you must write None literally, not the string "None", which would mean the file called "None").

Example: "C:\\Program Files\\P4DTI-RELEASE\\p4dti.log"

The replicator generates log messages to record its actions. These log messages are sent to all of the following locations:

log_level

Description: The minimum priority level of messages to log. Messages with this priority or a higher priority appear in the replicator's log.

Example: message.INFO

This parameter must be one of these constants:

message.ERR Errors.
message.WARNING Warnings; that is, features of your system that the replicator can work around, but which you should pay attention to. For example, "Table 'PROJECTS' has two entries called 'Compiler'.".
message.NOTICE Significant but expected events. For example, "Job 'BUG00001' overwritten by issue 'BUG00001'.".
message.INFO Informational messages. For example, "Replicating issue '123' to job 'BUG000123'."
message.DEBUG Debugging messages. For example, "Perforce command: 'p4 -G -u p4dti-replicator0 -p perforce:1666 job -o BUG00001'."

p4_client_executable

Description: The location of the Perforce client executable.

Example: "C:\\Program Files\\Perforce\\p4.exe"

This setting doesn't need to be an absolute path name if the directory is on the replicator user's path. On Windows this setting might be "C:\\Program Files\\Perforce\\p4.exe". On UNIX it might be just "p4".

The client executable named by this parameter must be of version 2000.2 or later (run the command p4 -V to check the client version), and it must be the same version as the Perforce server you are connecting to. If there's a mismatch between the Perforce client executable and the Perforce server, then you might see the error message (P4DTI-7087) Value for field 'Options' must be one of ....

p4_server_description

Description: A description of the Perforce server. This might be used by the defect tracker to show which Perforce server an issue is replicated to.

Example: "Hardware development group Perforce server"

poll_period

Description: The period of time between the end of one poll of the servers and the start of the next, in seconds.

Example: 10

prepare_issue(issue, job)

Description: A function that prepares a new issue for submission to the defect tracker by providing values for all the required fields.

See section 3, "Allowing users to create issues in Perforce" in the Perforce Defect Tracking Advanced Administrator's Guide for the full details.

replicate_p(issue)

Description: A function that selects which issues to start replicating. Normally, the P4DTI replicates all issues created or modified after the start_date, but you can modify this function to further restrict the issues.

See section 2, "Select the issues to replicate" in the Perforce Defect Tracking Advanced Administrator's Guide for the full details.

replicate_job_p(job)

Description: A function that selects which jobs in Perforce to replicate. Normally, the P4DTI ignores jobs created in Perforce, but you can provide this function to allow users to create jobs in Perforce and have them replicated to the defect tracker.

See section 3, "Allowing users to create issues in Perforce" in the Perforce Defect Tracking Advanced Administrator's Guide for the full details.

rid

Description: The replicator identifier.

Example: "replicator0"

Must be 32 characters or less, start with a letter or underscore, and consist only of letters, numbers, and underscores.

The replicator identifier is used to distinguish between replicators when multiple replicators are being used to replicate issues from a defect tracker to different Perforce servers. If you have only one replicator, it doesn't matter what you use for the replicator identifier; "replicator0" is a good choice since it allows you to add more replicators later.

If you change the replicator identifier then your currently replicated defect tracker issues stop being replicated. The replicator believes they are being handled by another replicator.

sid

Description: The Perforce server identifier.

Example: "perforce0"

Must be 32 characters or less, start with a letter or underscore, and consist only of letters, numbers and underscores. You might want to use the hostname of your Perforce server, if it is stable.

use_deleted_selections

Description: If this is 1, deleted TeamTrack states and selections appear as options for corresponding fields in Perforce. If this is 0, they don't appear in the Perforce jobspec or in drop-down menus in P4Win.

Example: 0

Warning: It is risky to set this to 0 because TeamTrack never really deletes a state or selection; it just marks it as deleted. So you may have issues in TeamTrack that use those deleted states and selections. If use_deleted_selections is 0 then these issues can't be replicated to Perforce. If this happens, you'll see errors like these:

use_perforce_jobnames

Description: Determines whether the replicator uses Perforce-style jobnames.

If this parameter is 1, the P4DTI lets Perforce choose the names of the jobs it creates when replicating issues from the defect tracker (so jobs will be named job000001, job000002 and so on). This means that the job name won't match the name of the corresponding issue in the defect tracker.

If this parameter is 0 (the default), the P4DTI tries to match the defect tracker's names for the issues it replicates. In the TeamTrack integration, jobs are called BUG00001, ENH00002, and so on. In the Bugzilla integration, jobs are called bug1, bug2, and so on.

Example: 1

If you change this setting, the P4DTI doesn't rename existing jobs, but new jobs get the style of name you requested.

use_windows_event_log

(Windows only)

Description: The replicator logs activity to the Windows event log if (and only if) this is 1.

Example: 1

If you set this to 1, you must make sure to install the Python interface to Windows (item 5 in section 3.3.1, "Software prerequisites").

Regardless of the setting of this parameter, the replicator also logs activity to to the standard output and to the log file (log_file).

The replicator can generate very many log messages. So if you set this parameter to 1, either specify "Overwrite events as needed" in the Windows Event Viewer on the machine running the replicator, or else set the log_level to a restrictive value like message.LOG_WARNING.

use_system_log

(Unix/Linux only).

Description: The replicator logs activity to the Unix or Linux system log (syslog) if (and only if) this is 1.

Example: 1

Regardless of the setting of this parameter, the replicator also logs activity to to the standard output and to the log file (log_file).

5.1.5. Choosing which fields to replicate

Here's some advice on which fields to replicate:

If you're using TeamTrack's sample database, you might want to replicate the following fields:

To find out the database name of a TeamTrack field, follow these steps:

  1. Run the TeamTrack administrator. (Under Windows, choose Start > Programs > TeamShare > TeamTrack Administrator.)
  2. Select the Projects tab.
  3. Select a project from the list (but not the base project).
  4. Click the Edit button.
  5. Select the Default Fields tab.
  6. Select the desired field from the list.
  7. Click the Edit button.
  8. Look in the Database Field Name field in the dialog.

Table 1 shows the field types in TeamTrack and indicates which ones may be replicated by the P4DTI.

Table 1. Supported field types in TeamTrack

Field type Field contents Replicable by P4DTI?
NUMERIC Numeric field, integer or floating-point Yes
TEXT Text field up to 255 characters Yes
MEMO Memo field Yes
DATETIME Date/Time field Yes
SELECTION Drop down selection field, one selectable Yes
BINARY Binary (two-state) field Yes
STATE The system-defined state field Yes
USER A drop down selection field containing user names Yes
PROJECT System-defined project field Yes
SUMMATION Calculated summation fields No
MULTIPLE_SELECTION Multi-select selection field No
CONTACT Contact selection field No
COMPANY Company selection field Yes
INCIDENT Incident selection field No
PRODUCT Product selection field Yes
SERVICEAGREEMENT Service Agreement Yes
FOLDER Folder link selection field No
KEYWORDLIST Keyword multi-select field No
PRODUCTLIST Product multi-select field No
PROBLEM Problem selection field. No
RESOLUTION Resolution selection field No
MERCHANDISE Merchandise selection field No
RELATIONAL Relational selection field No
SUBRELATIONAL Sub-relational selection field No
SYSTEM System field No
MULTIPLE_RELATIONAL Multiple relational selection field. No

Attachments such as notes are stored in separate tables in TeamTrack and are not replicated by the P4DTI. If you need to have supplementary information replicated to Perforce, use a memo field like "Additional Notes". In TeamTrack you can turn any memo field into a "journal" field which consists of a list of entries, each headed with the date of the entry and the name of user who added it.

If you're using Bugzilla, you might want to replicate the following fields:

If you're using Bugzilla, the replicator rejects the following types of changes from within Perforce:

The following table lists the field names for Bugzilla 2.10, 2.12, 2.14, 2.14.1, 2.14.4, and 2.16.1. If you have modified Bugzilla, your field names may differ. To display the set of Bugzilla field names, type mysqlshow bugs bugs at a shell prompt.

Table 2. Bugzilla field names

Field name Name on Bugzilla form Replication policy
bug_id Bug # always, read only
bug_status Status always, read/write
assigned_to Assigned To always, read/write, user
short_desc Summary always, read/write
resolution Resolution always, read/write
bug_file_loc URL read/write
bug_severity Severity read/write
op_sys OS read/write
priority Priority read/write
rep_platform Platform read/write
reporter Reporter read/write, user
qa_contact QA Contact read/write, user or None
status_whiteboard Status Whiteboard read/write
reporter_accessible Reporter checkbox read/write
assignee_accessible Assignee checkbox read/write
qacontact_accessible QA Contact checkbox read/write
cclist_accessible CC List checkbox read/write
longdesc Description append only
groupset - read only
creation_ts Opened read only
delta_ts - read only
product Product read only
version Version read only
component Component read only
target_milestone Target Milestone read only
votes Votes read only
keywords Keywords read only
lastdiffed - read only
everconfirmed - read only

The following fields are displayed on the Bugzilla bug form but are kept in separate database tables and cannot be replicated:

If you need to change the list of replicated fields after you've started using the P4DTI, see section 9, "Maintaining the P4DTI".

5.2. Perforce configuration

To configure Perforce, you must:

  1. Create a Perforce user for the replicator (section 5.2.1).
  2. Install Perforce triggers to enforce workflow (optional; section 5.2.2).
  3. Delete all Perforce jobs, if you have not already done so (section 5.2.3).

5.2.1. Creating a Perforce user for the replicator

Create a user in Perforce for the replicator; for instructions, see the Perforce System Administrator's Guide. The replicator user must have the following properties:

For information on getting a license from Perforce Software for this extra user, see section 3.2, "Perforce prerequisites".

5.2.2. Installing Perforce triggers to enforce workflow

You can use the P4DTI in combination with a Perforce trigger to enforce extra workflow restrictions. For example, if your organization assigns priorities to issues, you can prevent changes being made to areas of the repository unless they resolve at least one defect of priority 3 or higher.

The P4DTI comes with an example trigger script that you can adapt for your needs, installed as example_trigger.py in the default installation directory.

To enforce workflow restrictions, follow these steps:

  1. Configure the P4DTI to replicate the defect tracker fields that you want to check. For example, you can check that the "priority" or "severity" is above a certain level, or that a manager has set the "approval" field. See the replicated_fields configuration parameter (for Bugzilla or TeamTrack).
  2. Adapt the trigger script for your needs. You must be able to do a small amount of Python programming to adapt the trigger script. The example script contains comments to help you.
  3. Install the trigger script. For instructions on installing and managing trigger scripts, see the Perforce System Administrator's Guide.

5.2.3. Deleting Perforce jobs

You must delete all jobs from your Perforce installation. The P4DTI takes over the jobs subsystem of Perforce and rewrites the Perforce jobspec.

For instructions, see the Perforce Command Line User's Guide.

It is possible to keep existing issues that are stored in Perforce jobs. Migration submits all the Perforce job data to the defect tracker, so that the issues can be replicated back to Perforce, and so appear in both systems. This requires more experience of Perforce and some Python programming. See section 4, "Migrating to the defect tracker from Perforce jobs", of the Perforce Defect Tracking Integration Advanced Administrator's Guide.

If you already use Perforce jobs and have significant tools that depend on your jobspec, the configuration options described in section 5.1, "P4DTI configuration", might not be flexible enough to support your requirements. However, you might be able to write your own configuration and use your own jobspec. To write your own configuration, you must understand the P4DTI configuration architecture and be fluent in the Python programming language. See the Perforce Defect Tracking Integration Integrator's Guide for details of how to configure the P4DTI and guidance on developing your own configuration. Note that neither Perforce nor the manufacturer of your defect tracker can support a configuration that you write yourself.

5.3. TeamTrack configuration

To configure TeamTrack, you must:

  1. Update the Windows Registry (section 5.3.1).
  2. Create a TeamTrack user for the replicator (section 5.3.2).
  3. Provide field descriptions (section 5.3.3).

5.3.1. Updating the Windows Registry

You need to add a TeamTrack value to the Windows Registry to tell TeamTrack that the P4DTI is present. To do this, double-click the p4dti.reg file that comes with the P4DTI (it's installed in c:\program files\p4dti\p4dti.reg by default).

5.3.2. Creating a TeamTrack user for the replicator

You need to create a TeamTrack user for the replicator. This user corresponds to the replicator TeamTrack userid (teamtrack_user) parameter you set in section 5.1, "P4DTI configuration".

To create a TeamTrack user for the replicator, follow these steps:

  1. Run the TeamTrack Administrator. (Under Windows, choose Start > Programs > TeamShare > TeamTrack Administrator.)
  2. Select the Users tab.
  3. Click the Add button.
  4. On the General tab, in the Login ID field, enter the replicator user name (see the replicator Teamtrack userid (teamtrack_user) parameter).
  5. Click the User product access radio button (see Figure 7).
  6. On the Privileges tab, select the System tab and then select the "Connect using the API" check box (see Figure 8).
  7. On the Privileges tab, select the Item tab.
  8. In the pane at the left, select the base project.
  9. In the pane at the right, select the "Submit New Items", "Update All Items" and "Transition All Items" check boxes (see Figure 9).
  10. Click OK to add the user.

For information on getting a license from TeamShare for this extra user, see section 3.3, "TeamTrack prerequisites".

Figure 7. New user: General tab

Screen shot showing the general tab for creating a new user in TeamTrack Administrator

Figure 8. New user: Privileges tab, System tab

Screen shot showing the System tab on the Privileges tab for creating a new user in TeamTrack Administrator

Figure 9. New user: Privileges tab, Item tab

Screen shot showing the Item tab on the Privileges tab for creating a new user in TeamTrack Administrator

5.3.3. Providing field descriptions

The replicator uses TeamTrack issue field descriptions as the source for the Perforce job field descriptions. These job field descriptions appear in comments in every job form (if you're using the Perforce command line) and as tooltips for the fields in the job editing dialog (if you're using P4Win, the Perforce Windows GUI).

TeamTrack leaves field descriptions blank when you create a database, so you must provide descriptions of fields that your developers edit. For example, you might describe the TITLE field as "A one-sentence statement of the problem from the user's perspective", and the DESCRIPTION field as "A detailed description of the problem from the user's perspective, including how to reproduce it."

To enter field descriptions, follow these steps:

  1. Run the TeamTrack Administrator. (Under Windows, choose Start > Programs > TeamShare > TeamTrack Administrator.)
  2. Select the Workflows tab.
  3. Select the Issue Workflow.
  4. Click the Edit button.
  5. Select the Default Fields tab.
  6. Select the field you want to describe.
  7. Click the Edit button.
  8. Enter the description in the Description field.
  9. Click OK to save your entries.
  10. Repeat steps 6 to 9 until you're done.
  11. Click the OK button.

5.4. Bugzilla configuration

To configure Bugzilla, you must:

  1. Patch Bugzilla (section 5.4.1).
  2. Create a Bugzilla user for the replicator (section 5.4.2).
  3. Enable the P4DTI extensions in Bugzilla (section 5.4.3).

5.4.1. Patching Bugzilla

You need to make some minor modifications to the Bugzilla code so that users can see Perforce information on Bugzilla bug forms, and so that the P4DTI can access the values of Bugzilla configuration parameters. These modifications are distributed as patch files for versions 2.10, 2.12, 2.14, 2.14.1, 2.14.4, and 2.16.1 of Bugzilla.

The patch utility distributed with some versions of Solaris can not handle the form of patch file distributed with the P4DTI. We recommend using the GNU patch utility.

If you have modified Bugzilla at your site, you might still be able to apply the patch successfully. Changes to the database schema, the permissions rules, or the workflow rules are likely to cause the P4DTI to malfunction. You might need to modify the P4DTI if you have changed these parts of Bugzilla.

The patch for all Bugzilla versions changes the following Bugzilla files:

The patches for Bugzilla 2.14, 2.14.1, and 2.14.4 also change this file:

The patch for Bugzilla 2.16.1 also adds this file:

These changes are small and self-contained. If your changes do not affect these files or only affect them in minor ways, the patch should operate correctly. If the patch program fails because of your Bugzilla modifications, it might still be possible to introduce the changes by hand. If you cannot apply the patch, the replicator might still work, but the extensions listed in section 5.4.3 will not be available.

To apply the patch, follow these steps:

  1. Make a copy of your Bugzilla code so that you can uninstall the P4DTI if necessary.
  2. Go to your Bugzilla installation directory.
  3. Enter the following command:
    patch < p4dti-install-dir/bugzilla-bugzilla-version-patch
    (where p4dti-install-dir is your P4DTI installation directory) and bugzilla-version is your version of Bugzilla (2.10, 2.12, 2.14, 2.14.1, 2.14.4, or 2.16.1).
  4. Check the output of the patch program carefully to ensure it succeeded.

5.4.2. Creating a Bugzilla user for the replicator

You need to create a Bugzilla user for the replicator. The replicator uses e-mail addresses to work out which Perforce user corresponds to which Bugzilla user. A Perforce user that does not correspond to a Bugzilla user is translated to the replicator's Bugzilla user, except for user fields (for example, "AssignedTo") in jobs. The replicator rejects a change when there is no Bugzilla user corresponding to a changed user field.

To create a Bugzilla user for the replicator, follow these steps:

  1. In a Web browser, go to <http://your-bugzilla-path/editusers.cgi>.
  2. Log in if prompted.
  3. Click Submit to display the user list.
  4. At the bottom of the user list, click "Add a new user".
  5. In the "Login name" field, enter the replicator e-mail address (replicator_address).
  6. In the "Real name" field, enter a name like "Perforce defect tracking integration".
  7. Enter a password.
  8. In the "Disable text" field, enter something like "This user can access Bugzilla only as the P4DTI replicator process" to prevent access through the Bugzilla user interface.
  9. Click Add to create the user.

5.4.3. Enabling the P4DTI extensions in Bugzilla

After patching the Bugzilla code, you need to enable the P4DTI extensions in Bugzilla. There are two extensions:

To enable the extensions, follow these steps:

  1. In a Web browser, go to <http://your-bugzilla-path/editparams.cgi>.
  2. Log in as the Bugzilla administrator if prompted.
  3. Set the "p4dti" parameter to "on" (if it is not already on).
  4. Click "Submit changes" to enable the extensions.

To disable the Perforce section in the Bugzilla bug form, set the "p4dti" parameter to "off". Note that this does not control the replicator; it merely affects the display of replicated information.

5.5. Starting and stopping the replicator manually

To start the replicator, follow these steps from the operating system command line:

  1. Go to the P4DTI installation directory.
  2. Run the command python run.py.

The first time you start the replicator, it displays log output explaining how the replicator is setting up the defect tracker schema extensions, as shown in the following figure:

Figure 10. Example replicator log output on startup (TeamTrack integration)

2001-03-12 20:05:45 UTC  (P4DTI-6018)  Installing field 'P4DTI_RID' in the TS_CASES table.
2001-03-12 20:05:45 UTC  (P4DTI-6018)  Installing field 'P4DTI_SID' in the TS_CASES table.
2001-03-12 20:05:45 UTC  (P4DTI-6018)  Installing field 'P4DTI_JOBNAME' in the TS_CASES table.
2001-03-12 20:05:46 UTC  (P4DTI-603X)  Installed all new fields in the TS_CASES table.
2001-03-12 20:05:47 UTC  (P4DTI-6040)  Put 'LAST_CHANGE' parameter in replicator configuration with value '0'.
2001-03-12 20:05:47 UTC  (P4DTI-6040)  Put 'SERVER' parameter in replicator configuration with value '"{'sid': 'perforce0', 'description': 'Perforce server on sandpiper'}"'.
2001-03-12 20:05:47 UTC  (P4DTI-6040)  Put 'STATUS_VALUES' parameter in replicator configuration with value '"{'sid': 'perforce0', 'description': '_new/assigned/closed/verified/deferred'}"'.
2001-03-12 20:05:47 UTC  (P4DTI-6040)  Put 'CHANGELIST_URL' parameter in replicator configuration with value '"{'sid': 'perforce0', 'description': 'http://sandpiper.ravenbrook.com:8080/%d?ac=10'}"'.
2001-03-12 20:05:48 UTC  (P4DTI-8002)  Mailing 'P4DTI administrator <gdr+admin@ravenbrook.com>' re: '(P4DTI-8669)  The P4DTI replicator has started.'.
...

Each log entry consists of the date of the entry, a message identifier, and the message text. You can use the message identifier of an error message to look it up in section 11.2, "Error messages by identifier".

During its startup sequence, the replicator creates Perforce jobs corresponding to every defect tracker issue created or modified after the (start_date). It then polls for changes every poll_period seconds and replicates those changes. Figure 11 shows typical replicator log output when it is replicating a change.

Figure 11. Example replicator log output on replication (TeamTrack integration)

2001-03-12 19:59:29 UTC  (P4DTI-8057)  Replicating job 'CHG00003' to issue 'CHG00003'.
2001-03-12 19:59:30 UTC  (P4DTI-824X)  -- Changed fields: {'SEVERITY': 46, 'VERSION': 53, 'STATE': 2, 'PRIORITY': 17}.
2001-03-12 19:59:30 UTC  (P4DTI-6007)  -- Transition: 3; User: rb.
2001-03-12 19:59:30 UTC  (P4DTI-8261)  -- Defect tracker made changes as a result of the update: {'Owner': 'gdr'}.

To stop the replicator on Windows, follow these steps:

  1. Select the command window in which the replicator is running.
  2. Press Control-C and wait for the replicator to next poll (this takes up to poll_period seconds).

To stop the replicator on Unix systems, kill the replicator process. If it's running in a shell, bring it to the foreground and type Control-C. If not, find out the process id of the replicator process and run the command kill -TERM replicator-process-id.

5.6. Setting up the replicator to start automatically

The P4DTI can be run as a daemon on Unix and as an NT service on Windows. Check that the replicator starts manually and runs correctly, before leaving it to run automatically.

5.6.1. Running automatically on Unix

If you installed the P4DTI using the Linux RPM as described in section 4.3, "Linux installation", a startup script is automatically created in /etc/rc.d/init.d directory, so that the replicator starts as a daemon when the machine is booted. Alternatively you can start the P4DTI daemon manually by calling the startup script yourself:

/etc/rc.d/init.d/p4dti start

The replicator halts automatically when the system is shut down. You can stop the replicator daemon manually using the stop script:

/etc/rc.d/init.d/p4dti stop

On Solaris or other Unixes (and on Linux if you did not use the RPM installer), you might want to adapt the Linux startup script. It is in the file named startup-script in the installation directory.

5.6.2. Running automatically on Windows

On Windows, you can choose to install the P4DTI as a service. The replicator then starts when the machine is booted. You need not be logged on to the machine for the service to run or to stay running.

To install the service, follow these steps from the operating system command line:

  1. Go to the P4DTI installation directory.
  2. Run the command:
    python service.py

Once the service has been installed, it can be started in any of the following ways:

Once the service is running, it can be halted in any of the following ways. Note that you need not halt the service the same way that you started it.

To uninstall the service, go to the P4DTI installation directory and run the command:

python service.py remove

5.7. Advanced configuration

Not all of the flexibility of the P4DTI is available using the configuration options described in this section. Advanced configuration of the P4DTI is possible, but beyond the scope of this manual. Here are some of the things that are possible with advanced configuration:

Contact Perforce technical support if you need any of these facilities.

6. Migrating your defect tracking data to the integrated system

6.1. Migrating from the defect tracker

You do not need to take any special action to migrate defect tracking data from your defect tracker to the integrated system. The replicator starts replicating defect tracker issues as soon as it starts up. Only issues that are created or modified after the start_date are replicated to Perforce.

6.2. Allowing users to create issues in Perforce

See section 3, "Allowing users to create issues in Perforce" in the Perforce Defect Tracking Advanced Administrator's Guide.

6.3. Migrating to the defect tracker from Perforce jobs

See section 4, "Migrating to the defect tracker from Perforce jobs" in the Perforce Defect Tracking Advanced Administrator's Guide.

7. Testing the P4DTI

7.1. Taking a single step

When you're testing your P4DTI configuration, you might need to tell the P4DTI take a single step; that is, to poll the defect tracker and Perforce for changes, replicate those changes, then stop. If you need to do this:

  1. Change to the P4DTI installation directory.
  2. Run the command python poll.py.

7.2. Testing your configuration

Test the P4DTI configuration by creating a test issue and taking it through a complete life-cycle (that is, through the workflow) as described in the Perforce Defect Tracking Integration User's Guide. You might need to adapt the use cases described in the user's guide to your organization's workflow.

Test the P4DTI from both Perforce and the defect tracker. In Perforce, test the P4DTI using the interface that your developers are most likely to use. The main Perforce interfaces are:

7.3. Checking data consistency

To run the consistency checker and manage its output, follow these steps:

  1. Change to the P4DTI installation directory.
  2. Run the command python check.py.

You can also examine the database using a database application (for example, Microsoft Access or the mysql command) to ensure the Perforce data is in there.

8. Training and documentation

You might want to provide training for Perforce and defect tracker users before they adopt the P4DTI for everyday use. If so, consider preparing training materials that walk them through the workflow for an issue, using the procedures that are documented in the Perforce Defect Tracking Integration User's Guide.

Even if you don't have a formal training session for your users, ensure that they:

9. Maintaining the P4DTI

9.1. Maintaining the configuration

You must stop and restart the replicator as described in section 5.5, "Starting the replicator manually" after changing any of the configuration parameters described in section 5.1, "P4DTI configuration".

You must also refresh Perforce jobs, as described in section 9.2, "Refreshing jobs in Perforce", after changing either:

  1. the list of replicated fields (replicated_fields for Bugzilla or TeamTrack), or
  2. the start date for replication (start_date).

Perforce uses the field number in the jobspec to find data, not the field name (for more information, see the Perforce System Administrator's Guide). If you change the list of replicated fields, then the field numbers change, which means that the fields of existing jobs in Perforce will be mixed up. Refreshing the jobs re-creates them from the defect tracker with the correct fields.

9.2. Refreshing jobs in Perforce

Refreshing jobs updates all jobs in Perforce by replicating them from the defect tracker's database. This procedure is necessary if:

To refresh the Perforce jobs, follow these steps from the operating system command line:

  1. Stop the replicator.
  2. Go to the P4DTI installation directory.
  3. Run the command python refresh.py.
  4. Start the replicator again by running the command python run.py.

10. Uninstalling the P4DTI

To uninstall the P4DTI, follow these steps:

  1. Tell your staff. Ask them to stop using either Perforce jobs or the defect tracking, whichever you're not planning to use in future.
  2. Stop the replicator by following the instructions in section 5.5, "Starting the replicator manually" (or section 5.6, "Setting up the replicator to start automatically").
  3. Remove any hooks that you created in section 5.6, "Setting up the replicator to start automatically", such as Windows services, entries in /etc/rc.d, and so on.
  4. If you're using Bugzilla:
    1. Disable the Bugzilla extensions that were enabled in section 5.4.3, "Enabling the Bugzilla extensions".
    2. Delete the replicator's Bugzilla user that was created in section 5.4.2, "Creating a Bugzilla user for the replicator".
    3. optionally, restore the unpatched copy of Bugzilla made in section 5.4.1, "Patching Bugzilla".
  5. If you're using TeamTrack:
    1. Delete the replicator's TeamTrack user that was created in section 5.3.2, "Creating a TeamTrack user for the replicator".
  6. Remove any Perforce triggers that were added in section 5.2.2, "Installing Perforce triggers to enforce workflow".
  7. Delete the replicator's Perforce user created in section 5.2.1, "Creating a Perforce user for the replicator".
  8. If you installed using the Linux RPM, as described in section 4.3, "Linux installation", uninstall using the command
    rpm -e p4dti
    Otherwise, delete the contents of the P4DTI installation directory.

11. Troubleshooting and error messages

11.1. Troubleshooting

To troubleshoot a problem with the P4DTI, follow these steps:

  1. Look in the P4DTI log. If you find an error message, see if it is listed in section 11.2, "Error messages".

  2. Check your configuration against section 5.1, "P4DTI configuration". Are the hostnames, userids, and passwords correct? Most problems with the P4DTI are caused by incorrect or inconsistent configuration.

  3. See if there is any online support for your problem. Visit the P4DTI issue reports page <http://www.ravenbrook.com/project/p4dti/issue/>, choose your release and select the "Support information" report.

  4. If you can't solve the problem, contact Perforce support (for details, see <http://www.perforce.com/perforce/support.html>). Provide the following information:

    1. What you did immediately prior to the error's occurrence.
    2. What you think should have happened.
    3. What actually happened.
    4. The P4DTI release you are using (look in the readme.txt that came with your P4DTI distribution to identify the release).
    5. The Perforce release you are using. To determine your Perforce release, enter "p4 info" at the operating system command line.
    6. The name and release of the defect tracker you are using. To determine your TeamTrack release, click the information symbol in the top right of the page; include the Version, Browser, Web Server and Database entries in your problem report. To determine your Bugzilla release, check the top of a bug form.
    7. A section of the P4DTI log that includes the error that you're reporting and some context around that error.
    8. Copies of any related e-mail messages generated by the P4DTI.
    9. A copy of your config.py file.

11.2. Error messages by identifier

This isn't a complete list, but it covers the errors that have been seen in testing, or which are reasonably likely to come up, or which need some explanation. If you see a message not covered in this section or section 11.3, "Other error messages" and which is not self-explanatory, please contact Perforce support (see section 11.1, "Troubleshooting").

(P4DTI-1058) Given '%s' when expecting a string or integer.
(P4DTI-1069) Select '%s' of %s returns no rows.
(P4DTI-107X) Select '%s' of %s expecting one row but returns %d.
(P4DTI-1080) Trying to fetch a row from non-select '%s'.
(P4DTI-1091) Select '%s' of %s returned an unfetchable row.
(P4DTI-1105) Trying to fetch rows from non-select '%s'.
(P4DTI-1116) Select '%s' of %s returned unfetchable rows.
(P4DTI-1127) Select '%s' of %s expecting no more than one row but returns %d.
(P4DTI-1138) Select '%s' of %s returns %d columns but %d values.
(P4DTI-1160) Couldn't insert row in table '%s'.
(P4DTI-1171) Couldn't update row in table '%s' where %s.
(P4DTI-1229) Nothing in p4dti_replications table: database corrupted?
(P4DTI-1273) Bugzilla's fielddefs table does not include '%s'.

The replicator has had an unexpected difficulty in accessing the Bugzilla database. Possibly there is a problem with MySQL or MySQLdb. Possibly you are running a version of Bugzilla which is incompatible with the P4DTI, or have customized Bugzilla in such a way that the P4DTI has become confused. Please contact Perforce support (see section 11.1, "Troubleshooting").

(P4DTI-1207) Unknown or future P4DTI/Bugzilla schema version %s detected.

It looks as though you've been running with a later release of the P4DTI and then downgraded to an older release. We don't support downgrading; use the most recent release.

(P4DTI-123X) Bugzilla version %s is not supported by the P4DTI.

The P4DTI doesn't support your version of Bugzilla. Upgrade to a supported release (see section 3.4.1).

(P4DTI-2006) Configuration parameter '%s' must be 0 or 1.
(P4DTI-2017) Configuration parameter '%s' (value '%s') is not a valid date. The right format is 'YYYY-MM-DD HH:MM:SS'.
(P4DTI-2028) Configuration parameter '%s' (value '%s') is not a valid e-mail address.
(P4DTI-2039) Configuration parameter '%s' must be a function.
(P4DTI-204X) Configuration parameter '%s' must be an integer.
(P4DTI-2050) Configuration parameter '%s' must be a list.
(P4DTI-2061) Configuration parameter '%s' must be a list of %s.
(P4DTI-2072) Configuration parameter '%s' must be a string.
(P4DTI-2083) Configuration parameter '%s' must be None or a string.
(P4DTI-2094) Configuration parameter '%s' (value '%s') must be from 1 to 32 characters long, start with a letter or number, and consist of letters, numbers and underscores only.
(P4DTI-2108) Configuration parameter '%s' (value '%s') must contain exactly one %%d format specifier, any number of doubled percents, but no other format specifiers.
(P4DTI-2119) Configuration parameter '%s' (value '%s') must contain exactly one %%s format specifier, any number of doubled percents, but no other format specifiers.

Preliminary checking of the parameters set in config.py has found a problem. Correct the named parameter and start the P4DTI again.

(P4DTI-3009) Two Bugzilla states '%s' and '%s' map to the same Perforce state '%s'.

You are running a version of Bugzilla with different bug statuses from those in Bugzilla 2.10, 2.12, 2.14, 2.14.1, 2.14.4, or 2.16.1. The P4DTI has attempted to choose a sensible translation of these bug statuses to Perforce job states, but has failed. You may be able to fix this by changing the closed_state parameter. Otherwise you must modify your Bugzilla configuration.

The P4DTI chooses the names of states of Perforce jobs based on the status names in Bugzilla. It uses the following translation system:

For instance, if the closed_state parameter is "RESOLVED", the P4DTI uses the following translation table for the default Bugzilla statuses:

Bugzilla status Perforce state
UNCONFIRMED unconfirmed
NEW bugzilla_new
ASSIGNED assigned
RESOLVED closed
VERIFIED verified
CLOSED bugzilla_closed
REOPENED reopened

Alternatively, if the closed_state parameter is "CLOSED" or None, the P4DTI uses the following translation table for the default Bugzilla statuses:

Bugzilla status Perforce state
UNCONFIRMED unconfirmed
NEW bugzilla_new
ASSIGNED assigned
RESOLVED resolved
VERIFIED verified
CLOSED closed
REOPENED reopened

(P4DTI-301X) You specified the closed_state '%s', but there's no such Bugzilla state.

Check the closed_state parameter. It must be a valid Bugzilla state.

(P4DTI-3020) The '%s' column of Bugzilla's 'bugs' table is not an enum type.

The P4DTI is incompatible with the version of Bugzilla which you are running. You are running a very old version of Bugzilla, or have customized Bugzilla.

(P4DTI-3031) Configuration parameter 'bugzilla_directory' does not name a directory.
(P4DTI-3042) Configuration parameter 'bugzilla_directory' does not name a directory containing a processmail script.

Check the bugzilla_directory parameter. It must either be None or a string naming the Bugzilla installation directory.

If you're running Bugzilla under Windows, check that you've followed the instructions in section 3.6, "Win32 Installation Notes" of the Bugzilla Guide [Bugzilla 2002-09-30].

(P4DTI-3053) Bugzilla's table 'profiles' does not have a 'login_name' column.
(P4DTI-3064) The 'login_name' column of Bugzilla's 'profiles' table does not have a 'text' type.
(P4DTI-3075) Bugzilla's table 'bugs' does not have a '%s' column.
(P4DTI-3086) The 'bug_status' column of Bugzilla's 'bugs' table is not an enum type.
(P4DTI-3097) The 'resolution' column of Bugzilla's 'bugs' table is not an enum type.
(P4DTI-3100) The 'resolution' column of Bugzilla's 'bugs' table does not have a 'FIXED' value.

The P4DTI is incompatible with the version of Bugzilla which you are running. You are running a very old version of Bugzilla, or have customized Bugzilla.

(P4DTI-3111) Field '%s' specified in 'replicated_fields' is a system field: leave it out!

Some fields are always replicated. For details, see the replicated_fields parameter.

Remove the system fields from your list of replicated fields and start the P4DTI again.

(P4DTI-3122) Field '%s' appears twice in 'replicated_fields'.

Each replicated field must only appear once in the replicated_fields parameter. Remove the duplicate and start the P4DTI again.

(P4DTI-3133) Field '%s' specified in 'replicated_fields' list not in Bugzilla 'bugs' table.

The replicated_fields parameter specifies a field which is not in Bugzilla.

(P4DTI-3144) Field '%s' specified in 'replicated_fields' list has type '%s': this is not yet supported by P4DTI.
(P4DTI-3155) Field '%s' specified in 'replicated_fields' list has floating-point type: this is not yet supported by P4DTI.

The P4DTI doesn't support all Bugzilla field types. One of the fields in your replicated_fields parameter has an unsupported type.

Remove the field from your replicated_fields and start the replicator again.

If you really need this field to be replicated, see the advice for (P4DTI-4067).

(P4DTI-3166) You can't have a field called 'code' in the Perforce jobspec.

You are running a version of Bugzilla with different bug fields from those in Bugzilla 2.10, 2.12, 2.14, 2.14.1, 2.14.4, or 2.16.1, and are trying to replicate a field called "code". Perforce doesn't allow a job field called "code". Remove the "code" field from the replicated_fields parameter or modify your Bugzilla configuration to rename the field.

(P4DTI-3177) Too many fields to replicate: Perforce jobs can contain only 99 fields.

Reduce the number of fields that you replicate by removing items from the replicated_fields parameter.

(P4DTI-4001) Two TeamTrack states '%s' and '%s' map to the same Perforce state '%s'.

The P4DTI chooses the names of states of Perforce jobs based on the state names in TeamTrack. It uses the following mapping system:

Resolve this problem by making the state names distinct in TeamTrack. Do not use spaces at the beginning of state names.

(P4DTI-4012) You specified the closed_state '%s', but there's no such TeamTrack state.

See (P4DTI-301X).

(P4DTI-4023) Couldn't get descriptions for TeamTrack system fields STATE, OWNER, and TITLE.

You may be using a version of TeamTrack with a release of the P4DTI that doesn't support it. If so, upgrade to a P4DTI release that supports your version of TeamTrack.

This could happen if you don't have a tTrack solution in your TeamTrack database. If so, create one.

(P4DTI-4034) Field '%s' specified in 'replicated_fields' list not in TeamTrack FIELDS table.

You can specify a list of fields for the P4DTI to replicate into jobs; for details, see the replicated_fields parameter. This error means that the P4DTI couldn't find one of the fields in the list. This problem might happen if you change the set of fields in TeamTrack.

Double-check the field names you specified as the replicated_fields. If you're changing fields in TeamTrack, see section 9, "Maintaining the P4DTI", for important information.

(P4DTI-4045) Field '%s' specified in 'replicated_fields' list is a system field: leave it out!

See (P4DTI-3111).

(P4DTI-4056) Field '%s' appears twice in 'replicated_fields'.

See (P4DTI-3122).

(P4DTI-4067) Field '%s' has type %d: this is not supported by P4DTI.

The P4DTI doesn't support all TeamTrack field types. One of the fields in your replicated_fields parameter has an unsupported type.

You can determine the list of supported types from the type_table in configure_teamtrack.py. The most notable unsupported type is "MULTIPLE_SELECTION", because Perforce does not provide any kind of multiple selection interface.

If you really need to have the field replicated, you have the following options:

(P4DTI-4078) You can't have a field called 'code' in the Perforce jobspec.

Perforce uses the field "code" to pass internal status information to clients.

In TeamTrack, change the logical name of the field to something other than "code" by following these steps:

  1. Run the TeamTrack Administrator. (Under Windows, choose Start > Programs > TeamShare > TeamTrack Administrator.)
  2. Select the Workflow tab.
  3. Select the workflow containing the field called "code".
  4. Click the Edit button.
  5. Select the Default Fields tab.
  6. Select the "code" field.
  7. Click the Edit button.
  8. Change the Logical Field Name.
  9. Click OK.
  10. Click OK again.

(P4DTI-4089) Too many fields to replicate: Perforce jobs can contain only 99 fields.

See (P4DTI-3177).

(P4DTI-5004) User %d isn't in the right bug group to edit bug %d.

A Perforce user has made a change to a bug which Bugzilla would not allow them to edit.

Bugzilla bugs can be grouped into "bug groups", which restrict the ability of users to view or edit them. Perforce protections cannot express these bug groups, so the replicator must enforce the Bugzilla restrictions by rejecting changes made by users outside the necessary bug group.

Another possible cause is that the P4DTI has failed to find a Bugzilla user corresponding to the Perforce user. See section 3.5, "User accounts" for details of how users are mapped from one system to the other, and how to diagnose problems.

(P4DTI-5015) User %d doesn't have permission to change field '%s' of bug %d to %s.

A Perforce user has made a change which Bugzilla would not have permitted them to make.

Bugzilla has complex access controls which prohibit some users from making some changes to bugs. Perforce protections cannot express these controls so the replicator enforces these controls by rejecting changes to jobs which would not be permitted by Bugzilla.

Another possible cause is that the P4DTI has failed to find a Bugzilla user corresponding to the Perforce user. See section 3.5, "User accounts" for details of how users are mapped from one system to the other, and how to diagnose problems.

(P4DTI-5026) The P4DTI does not support marking bugs as DUPLICATE from Perforce.

A Perforce user has changed a job's status to "duplicate".

When a bug is marked as a duplicate in Bugzilla, the number of the other bug is provided and a message identifying it is appended to the long description. The Perforce job interface provides no easy way of expressing this, so the replicator does not allow it.

(P4DTI-5037) Bugzilla does not allow a transition from status '%s' to '%s'.

A Perforce user has changed the 'status' field of a bug in a way not permitted by Bugzilla. For instance, moving a bug directly from UNCONFIRMED to CLOSED. These transitions are not allowed in Bugzilla, and the replicator enforces that prohibition by rejecting such a change.

It is difficult but possible to cause this error by making more than one change to the status in rapid succession (between two consecutive replicator polls). The replicator can't tell if that has happened, so has to reject the change anyway.

(P4DTI-5048) Cannot change Bugzilla field '%s'.

A Perforce user has made a change to a field which the replicator treats as read-only. See section 5.1.5, "Choosing which fields to replicate".

(P4DTI-5059) Can only append to Bugzilla field '%s'.

A Perforce user has changed the long description text in some way other than appending to it. See section 5.1.5, "Choosing which fields to replicate".

(P4DTI-506X) Updating non-existent Bugzilla field '%s'.
(P4DTI-5092) No Perforce status corresponding to Bugzilla status '%s'.
(P4DTI-5106) No Bugzilla status corresponding to Perforce status '%s'.

These errors indicate a serious configuration error; someone's changed configure_bugzilla.py and broken it.

(P4DTI-5070) Bugzilla does not have a group called '%s'.
(P4DTI-5081) Bugzilla's fielddefs table does not include '%s'.

The P4DTI is incompatible with the version of Bugzilla which you are running. You are running a very old version of Bugzilla, or have customized Bugzilla.

(P4DTI-5117) Perforce field value '%s' could not be translated to a number for replication to Bugzilla.

A Perforce user has set a field, which corresponds to a numeric field in Bugzilla, to something which couldn't be converted to a number.

(P4DTI-5128) Bugzilla P4DTI user '%s' has e-mail address matching Perforce user '%s', not Perforce P4DTI user '%s'.

The replicator Perforce user (p4_user parameter) has an e-mail address that does not match the replicator_address parameter. See section 5.2.1, "Creating a Perforce user for the replicator".

(P4DTI-5139) Bugzilla P4DTI user '%s' is not a known Bugzilla user.

There is no Bugzilla user whose e-mail address matches the replicator_address parameter. See section 5.4.2, "Creating a Bugzilla user for the replicator".

(P4DTI-514X) There is no Bugzilla user corresponding to Perforce user '%s'.

You have changed a user field in a job to a Perforce user who does not have a Bugzilla user record. The replicator is unable to replicate that field back to Bugzilla.

(P4DTI-5172) Can't create Bugzilla bug without short_desc field.
(P4DTI-5183) Can't create Bugzilla bug with empty short_desc field.
(P4DTI-5194) Can't create Bugzilla bug without product field.
(P4DTI-5208) Can't create Bugzilla bug for non-existent product '%s'.
(P4DTI-5219) Can't create Bugzilla bug for product '%s' with no components.
(P4DTI-522X) Can't create Bugzilla bug without component field.
(P4DTI-5230) Can't create Bugzilla bug: product '%s' has no component '%s'.
(P4DTI-5241) Can't create Bugzilla bug for product '%s' with no versions.
(P4DTI-5252) Can't create Bugzilla bug without version field.
(P4DTI-5263) Can't create Bugzilla bug: product '%s' has no version '%s'.
(P4DTI-5285) Can't create Bugzilla bug with invalid groupset '%s'.
(P4DTI-530X) Can't create Bugzilla bug with bug_status '%s' and no resolution.
(P4DTI-5310) Can't create Bugzilla bug with field '%s'.
(P4DTI-5321) Can't create Bugzilla bug without reporter field.

The P4DTI has tried to create a new bug in Bugzilla but the new bug doesn't satisfy a Bugzilla constraint. There are two solutions:

(P4DTI-5354) '%s' not a Bugzilla group.

An entry in migrated_user_groups is not a Bugzilla group. Fix the parameter and re-run migration of users [GDR 2001-11-14, 4.4].

(P4DTI-5376) User %d is disabled, so cannot edit bug %d.

(P4DTI-5387) User 0 cannot edit bug %d.

(P4DTI-5398) Can't create Bugzilla bug with reporter 0.

The P4DTI has attempted to create a new Bugzilla bug (either as part of migration of pre-existing jobs or when replicating a newly-created job), and was unable to deduce the reporting user. See section 3, "Allowing users to create ussies in Perforce" and section 4, "Migrating to the defect tracker from Perforce jobs" , of the Perforce Defect Tracking Integration Advanced Administrator's Guide.

(P4DTI-5401) Can't change Bugzilla field '%s' to 0.

A user in Perforce has changed one of the required user fields ("Reporter" or "Assigned_To") to "None". This value is only permitted in the optional user field ("QA_Contact").

(P4DTI-5423) Perforce P4DTI user '%s' is not a known Perforce user.

The replicator Perforce user is not known to the Perforce server.

(P4DTI-5434) Perforce P4DTI user '%s' has the same e-mail address '%s' as these other Perforce users: %s.

The replicator Perforce user has the same e-mail address as one or more other Perforce users.

(P4DTI-5456) Bugzilla P4DTI user e-mail address '%s' belongs to several Bugzilla users: %s.

Several Bugzilla users have their e-mail address set to the replicator e-mail address. This should be the e-mail address of the Bugzilla P4DTI user only. See section 5.4.2.

(P4DTI-5503) Bugzilla P4DTI user '%s' does not have a matching Perforce user. It should match the Perforce user '%s' but that matches the Bugzilla user %d (e-mail address '%s').

(P4DTI-5514) Bugzilla P4DTI user '%s' does not have a matching Perforce user. It should match the Perforce user '%s' (which has e-mail address '%s').

The Bugzilla P4DTI user (identified by the replicator e-mail address) should match the P4DTI Perforce user, but their e-mail addresses do not match.

(P4DTI-6142) No transition from state '%s' to state '%s'.

A user in Perforce has changed the state of a job in an illegal fashion (for example, changing the state from "assigned" to "verified", bypassing the state "resolved").

Either change the state in a legal way, or modify the TeamTrack workflow so that there is a transition corresponding to the desired state change.

(P4DTI-6153) No login id in TeamTrack's USERS table corresponding to replicator's login id '%s'.

The replicator couldn't find an entry in TeamTrack's table of users for its own login id. Did you delete this user accidentally? If so, add it again and restart the P4DTI. If not, please contact Perforce support (see section 11.1, "Troubleshooting").

(P4DTI-6164) No LAST_CHANGE record for this replicator.

Someone has reconnected the TeamTrack server to a new TeamTrack database without first stopping the P4DTI. Either reconnect to the old TeamTrack database or restart the P4DTI.

(P4DTI-6175) TeamTrack database version %d is not supported by the P4DTI. The minimum supported version is %d.

You're running an old version of TeamTrack that isn't supported by the P4DTI. Upgrade your TeamTrack server to a supported version. See section 3.3.1, "TeamTrack software prerequisites".

(P4DTI-6186) Incorrect date in Perforce: '%s' is not in the format 'YYYY/mm/dd HH:MM:SS'.

You've entered something in a date/time field in Perforce that couldn't be recognized as a date and time. Date/time values in Perforce must be in the format year/month/day hour:minutes:seconds, with four digits for the year, and two digits for everything else. For example, 2001/08/04 04:14:56.

(P4DTI-6197) Incorrect time in Perforce: '%s' is not in the format 'H:MM:SS'.

You've entered something in an elapsed time field in Perforce that couldn't be recognized as an elapsed time. Elapsed time values in Perforce must be in the format H:MM:SS. For example 4:14:56 or 100:00:00.

(P4DTI-6211) No TeamTrack entity in table '%s' with id %d.
(P4DTI-6233) No TeamTrack selection name for selection id '%d'.
(P4DTI-6266) No state name for TeamTrack state %d.

The TeamTrack database is inconsistent: a foreign key reference was not found. If you've recently edited your TeamTrack workflow, then this might be due to a race condition; try restarting the replicator (see section 5.5). If the problem persists, contact Perforce support (see section 11.1, "Troubleshooting").

(P4DTI-6222) No TeamTrack entity in table '%s' with name '%s'.
(P4DTI-6244) No TeamTrack selection for field '%s' corresponding to Perforce selection '%s'.
(P4DTI-6277) Perforce state '%s' is unknown.
(P4DTI-6426) No TeamTrack state corresponding to Perforce state '%s'.

A Perforce job has a field with a value that's illegal in TeamTrack (for example, a non-existent project). Either correct the job so that all fields are legal, or update your TeamTrack workflow to add the new value and restart the replicator (see section 5.5).

(P4DTI-6255) No Perforce state corresponding to TeamTrack state '%s'.

The replicator is trying to replicate an issue in TeamTrack that can't be translated to Perforce because its state is unknown.

This can happen if you've added a state to the TeamTrack workflow. In that case you need to restart the replicator (see section 5.5).

It can also happen if you've set use_deleted_selections to 0 but there's an issue in a deleted state. See that configuration parameter for advice.

(P4DTI-6288) No TeamTrack state in project '%s' corresponding to Perforce state '%s'.

A user in Perforce changed the state of a job to a state that is not legal for the project to which the job belongs. (Note that the state is legal in some other project, otherwise it wouldn't be possible to set the job to that state.)

Set the job to a state that is legal for its project, or modify the TeamTrack workflow so that the desired state is legal in the project.

If you get this message frequently, this is a sign that your TeamTrack workflow is too complicated for people to follow accurately in Perforce. You should consider unifying the workflows for different projects, so that developers aren't confused about which states are legal for which jobs.

(Of course, it would be nice if Perforce only showed the states that are legal for the project to which the job belongs. But that requires Perforce to understand the full details of TeamTrack project, workflow and state definitions. Perforce does not have this capability.)

(P4DTI-6335) The TeamTrack field %s is append-only: you're not allowed to edit previous comments.

A user in Perforce has updated other users' comments in an append-only journal field; this isn't allowed. Either edit the field properly (by adding new material at the end), or else change the field definition in TeamTrack so that it's no longer append-only (in the TeamTrack Administrator, select the "Workflows" tab, choose the workflow, click "Edit...", select the "Default Fields" tab, choose the field, click "Edit...", select the "Options" tab, uncheck the "Append only" checkbox, click "OK", click "OK") and restart the replicator (see section 5.5).

(P4DTI-6404) Can't submit new issue to TeamTrack: SUBMITTER %d is unknown.

When creating a new issue in TeamTrack based on a job in Perforce, the replicator couldn't guess a good value for the SUBMITTER field in TeamTrack. TeamTrack requires this field to contain a valid user. Possible causes are:

(P4DTI-6415) Submitted new issue to TeamTrack with issue id %05d, but couldn't find it in the database.

The replicator couldn't find a newly-submitted issue in the TeamTrack database. Please contact Perforce support (see section 11.1, "Troubleshooting").

(P4DTI-7043) Perforce client changelevel %d is not supported by P4DTI. Client must be at changelevel %d or above.

The Perforce client executable specified by the p4_client_executable parameter is an old version not supported by the P4DTI. Install a supported version (see section 3.2.1, "Perforce software prerequisites") and set the p4_client_executable parameter to name it.

(P4DTI-7054) The command '%s' didn't report a recognizable version number. Check your setting for the 'p4_client_executable' parameter.

Your setting for the p4_client_executable parameter doesn't name a Perforce client executable (or doesn't name one that's supported by the P4DTI. Correct your setting.

(P4DTI-7076) The Perforce client exited with error code %d. The server might be down; the server address might be incorrect; or your Perforce licence might have expired.

Check your setting for the p4_port parameter. Check that the Perforce server is running happily. Check that it has enough disk space. Check that your Perforce licence is up to date.

(P4DTI-7065) %s The Perforce client exited with error code %d.
(P4DTI-7087) %s

There's a problem with Perforce. Look up the text of the error message in section 11.3, "Other error messages", for advice.

(P4DTI-7098) The Perforce interface does not support the operating system '%s'.

You've installed the P4DTI on an unsupported operating system. See the release notes for details of the supported operating systems.

(P4DTI-7101) Jobspec fields '%s' and '%s' have the same number %d.

The replicator was trying to install a new Perforce jobspec, but it can't because two fields have the same field number (field number is a unique key in Perforce). If you're using advanced configuration [GDR 2000-10-16, 8.6], then check that your jobspec configuration parameter gives unique numbers to each field; see [GDR 2000-10-16, 8.4]. Otherwise, contact Perforce support (see section 11.1, "Troubleshooting").

(P4DTI-8341) The Perforce server changelevel %d is not supported by the P4DTI. See the P4DTI release notes for Perforce server versions supported by the P4DTI.
(P4DTI-8352) The Perforce command 'p4 info' didn't report a recognisable version.

You are running a version of the Perforce server that is not supported by the P4DTI. See the release notes for supported Perforce server versions.

(P4DTI-8363) P4DTI fields not found in Perforce jobspec.

If you're using advanced configuration [GDR 2000-10-16, 8.6], then check that your jobspec configuration parameter has the required P4DTI fields; see [GDR 2000-10-16, 8.4]. Otherwise, contact Perforce support (see section 11.1, "Troubleshooting").

(P4DTI-8727) Issue '%s' should be replicated but is not.
(P4DTI-8738) Issue '%s' should be replicated to job '%s' but that job either does not exist or is not replicated.
(P4DTI-8749) Issue '%s' is replicated to job '%s' but that job is replicated to issue '%s'.
(P4DTI-875X) Job '%s' would need the following set of changes in order to match issue '%s': %s.
(P4DTI-8760) Job '%s' has associated filespec '%s' but there is no corresponding filespec for issue '%s'.
(P4DTI-8771) Issue '%s' has associated filespec '%s' but there is no corresponding filespec for job '%s'.
(P4DTI-8782) Change %s fixes job '%s' but there is no corresponding fix for issue '%s'.
(P4DTI-8793) Change %d fixes issue '%s' but there is no corresponding fix for job '%s'.
(P4DTI-8807) Change %s fixes job '%s' with status '%s', but change %d fixes issue '%s' with status '%s'.
(P4DTI-8818) Job '%s' is marked as being replicated to issue '%s' but that issue is being replicated to job '%s'.
(P4DTI-8829) Job '%s' is marked as being replicated to issue '%s' but that issue either doesn't exist or is not being replicated by this replicator.
(P4DTI-8862) 1 inconsistency found.
(P4DTI-8873) %d inconsistencies found.
(P4DTI-8884) Asked for issue '%s' but got an error instead.
(P4DTI-8895) Job '%s' has a date field in the wrong format: %s.

The Perforce jobs database is inconsistent with the TeamTrack database. This might be a consequence of frequent activity in the two systems (because the P4DTI works by polling, there's a delay between changing one system and the the other system being brought up to date); if so, the databases will be made consistent if you cease activity and poll twice (section 7.1, "Taking a single step").

If polling doesn't make the databases consistent, then you can either make them consistent by editing the offending jobs, or by refreshing the Perforce jobs (section 9.2, "Refreshing jobs in Perforce").

If that doesn't work, contact Perforce support (see section 11.1, "Troubleshooting").

(P4DTI-891X) Error (%s): %s

There's a problem in the defect tracker. Look up the text of the error message in section 11.3, "Other error messages", for advice.

(P4DTI-9060) Defect tracker '%s' does not support migration of Perforce users.

The P4DTI doesn't provide automated support for migrating users from Perforce to TeamTrack. You have to create new uses in TeamTrack by hand using the TeamTrack Administrator.

(P4DTI-913X) Error in P4DTI logger: %s

Something's gone wrong with the P4DTI logger. Look up the text of the error message in section 11.3, "Other error messages", for advice.

(P4DTI-9242) Expected translate_jobspec to return a dictionary, but instead it returned %s.

Check that you have a line like return job at the end of your translate_jobspec function.

(P4DTI-10037) TeamTrack version %s is not supported by the P4DTI.

Check your setting for the teamtrack_version parameter. See the release notes for the supported versions.

(P4DTI-10059) MySQLdb version '%s' (release '%s') detected. This release is incompatible with the P4DTI.

You're using a release of the Python database module MySQLdb which is known to be incompatible with the P4DTI. Install a supported release of MySQLdb. See section 3.4.1, "Bugzilla software prerequisites".

(P4DTI-1006X) MySQLdb version '%s' (release '%s') detected. This release is not supported by the P4DTI, but may work.

You're using a release of the Python database module MySQLdb which is not supported by the P4DTI, but which may work anyway. If you have problems accessing the Bugzilla database, install a supported release of MySQLdb. See section 3.4.1, "Bugzilla software prerequisites".

(P4DTI-10106) Fatal error in P4DTI service: %s.

Something's happened to the P4DTI when running as an NT service. Look up the text of the error message in section 11.3, "Other error messages", for advice.

(P4DTI-10172) An attempt to write a log message to standard output failed.

Something has gone wrong with the standard output of the replicator. This can happen if standard output was originally connected to a terminal, but the terminal has been closed without stopping the replicator.

The remedy is to start the replicator with the startup script, as described in section 5.6.1, "Running automatically on Unix", or to redirect the standard output to somewhere safe, for example

python run.py > /dev/null

11.3. Other Error messages

Insecure $ENV{BASH_ENV} while running with -T switch at ./processmail line %d

You're using Bugzilla 2.14, 2.14.1, 2.14.4, or 2.16.1, but the patch hasn't been applied yet. See section 5.4.1, "Patching Bugzilla".

_mysql.InternalError: (3, "Error writing file '%s' (Errcode: 28)")

We've seen this error when MySQL has run out of disk space.

_mysql.OperationalError: (1045, "Access denied for user: '%s@%s' (Using password: NO)")

The dbms_user parameter is set incorrectly or the dbms_password parameter is set to None when a password is required.

_mysql.OperationalError: (1045, "Access denied for user: '%s@%s' (Using password: YES)")

The dbms_password parameter is set incorrectly.

_mysql.OperationalError: (1049, "Unknown database '%s'")

The MySQL server on dbms_host doesn't serve a database whose name matches the dbms_database parameter.

_mysql.OperationalError: (2003, "Can't connect to MySQL server on '%s' (111)")

A MySQL connection couldn't be established to the host given by the dbms_host parameter on either the port given by the dbms_port parameter or the default MySQL port 3306. Possible causes include:

_mysql.OperationalError: (2005, "Unknown MySQL Server Host '%s' (2)")

The host given by the dbms_host parameter could not be located.

_mysql.OperationalError: (2006, 'MySQL server has gone away')

The connection to the MySQL server has been lost. The replicator will recover when the server connection is re-established.

Perforce error: Can't create a new user - over licence quota

You don't have a licence for the replicator. See section 3.2.1, "Perforce software prerequisites".

This might be because you changed the p4_user parameter but didn't delete the old userid.

Perforce error: Error detected at line %d. Value for field 'Options' must be one of noallwrite/allwrite,noclobber/clobber,nocompress/compress,unlocked/locked,nomodtime/modtime,normdir/rmdir.

You're using a Perforce client that's incompatible with the Perforce server (for example, you're using a Perforce 2000.2 client to connect to a Perforce 2001.1 server). Check your setting for the p4_client_executable parameter.

Perforce error: Error detected at line %d. Value for field '%s' must be one of %s.

The replicator is trying to replicate an issue that's has a selection that isn't valid in Perforce.

This can happen if you've added an option to a field in the defect tracker. In that case you need to restart the replicator (see section 5.5).

It can also happen if you've set use_deleted_selections to 0 but there's an issue with a deleted option. See that configuration parameter for advice.

Perforce error: You don't have permission for this operation

You haven't given the replicator permission to edit the Perforce jobspec. The replicator needs to have superuser privileges in Perforce. For instructions, see section 5.2.1, "Creating a Perforce user for the replicator".

socket.error: (10222, 'invalid argument')

Your SMTP server may be refusing connections. Check your smtp_server parameter. Check that your SMTP server is up and running.

socket.error: host not found

You may have specified the wrong hostname for the SMTP server. Check your smtp_server parameter. Check that your SMTP server is up and running.

TeamShare API error: ERROR: (no message from the TeamShare API)

This means that TeamTrack reported an error, but provided no information about the cause of the error. The Windows Application Log on the TeamTrack server machine often contains more information about why problems are occurring. Use the Event Viewer to examine the Windows Application Log on that machine.

This might be because you are using TeamTrack version 5.0 or later, but you specified teamtrack_version = "4.5". Check your setting for the teamtrack_version parameter.

TeamShare API error: ERROR: Unable to find transition 0.

The replicator user may not have the "Update All Issues" privilege. Check the privileges for the replicator user: see section 5.3.2, "Creating a TeamTrack user for the replicator".

TeamShare API error: SERVER_ERROR: Authentication Failed. Invalid user id or password

You haven't created a user in TeamTrack for the replicator (for instructions, see section 5.3.2, "Creating a TeamTrack user for the replicator"), or else you've given the replicator incorrect values for the teamtrack_user and teamtrack_password parameters.

TeamShare API error: SERVER_ERROR: Access Denied. You do not have API connect privileges.

The replicator's TeamTrack user lacks the "Connect using the API" privilege. You need to use the TeamTrack Administrator to assign this privilege. See section 5.3.2, "Creating a TeamTrack user for the replicator".

TeamShare API error: SERVER_ERROR: Server error: -1.

You may be using TeamTrack 4.5 but have specified teamtrack_version = "5.0". Check your setting for the teamtrack_version parameter.

Or your TeamTrack server may be running on a secure web server (its address starts https:). The P4DTI does not support TeamTrack on a secure web server.

TeamShare API error: SOCKET_CONNECT_FAILED: Socket Connect failed.

The P4DTI can't connect to the TeamTrack server. Check that TeamTrack is up and running. Check your setting for the teamtrack_server parameter.

TeamShare API error: SOCKET_READ_ERROR: Authentication Failed. No user information.

TeamTrack is not accepting authentication information from the HTTP header because you have turned off this feature.

Set up TeamTrack to accept authentication information from the HTTP header. In the TeamTrack Administrator, choose Options > Settings; choose the Server tab; click the "Accept Info From Browser/Header" checkbox. (Note that you do not have to turn off the "Accept Info From Form/URL/Cookie" checkbox. If both boxes are checked, TeamTrack tries to get the authentication information from a cookie first, and the HTTP header second.)

TeamShare API error: SOCKET_READ_ERROR: Socket error.

You may have tried to connect to a TeamTrack server with an incorrect user id or password. Check your settings for the teamtrack_user and teamtrack_password parameters.

The replicator user may not have the "Connect using the API" privilege. Check the privileges for the replicator user: see section 5.3.2, "Creating a TeamTrack user for the replicator".

A. References

[BeOpen PythonLabs 2000-10-16] "Python Tutorial"; Guido van Rossum (Fred L. Drake, Jr., editor); BeOpen PythonLabs; 2000-10-16; <http://www.python.org/doc/current/tut/tut.html>.
[Bugzilla 1999-02-25] Bugzilla 2.10 Installation README file; Ry4an Brase, Bryce Nesbitt, Dan Mosedale, Martin Pool, Terry Weissman; The Mozilla Organization; 1999-02-25
[Bugzilla 2002-09-30] "The Bugzilla Guide" (for Bugzilla 2.14.4); Matthew P Barnson; 2002-09-30.
[GDR 2001-11-14] "Perforce Defect Tracking Integration Advanced Administrator's Guide"; Gareth Rees; Ravenbrook Limited; 2001-11-14.
[MySQL 2000-07-02] "MySQL Reference Manual for version 3.23.20-beta"; MySQL; 2000-07-02.
[Perforce 2001-06-18a] "Perforce 2001.1 Command Line User's Guide"; Perforce Software; 2001-06-18; <http://www.perforce.com/perforce/doc.011/manuals/p4guide/>, <ftp://ftp.perforce.com/pub/perforce/r01.1/doc/manuals/p4guide/p4guide.pdf>.
[Perforce 2001-06-18b] "Perforce 2001.1 System Administrator's Guide"; Perforce Software; 2001-06-18; <http://www.perforce.com/perforce/doc.011/manuals/p4sag/>, <ftp://ftp.perforce.com/pub/perforce/r01.1/doc/manuals/p4sag/p4sag.pdf>.
[RB 2000-08-10] "Perforce Defect Tracking Integration User's Guide"; Richard Brooksby; Ravenbrook Limited; 2000-08-10.
[GDR 2000-10-16] "Perforce Defect Tracking Integration Integrator's Guide"; Gareth Rees; Ravenbrook Limited; 2000-10-16.
[TeamShare 2002-01-31] "TeamTrack Administrator Manual 5.5"; TeamShare; 2002-01-31.

B. Document History

2000-08-10 RB Created placeholder.
2000-09-11 GDR Added instructions for demonstrating the integration and notes on version 0.2.
2000-09-20 RB Replaced demo instructions with full documentation outline from documentation plan.
2000-10-15 RB Added installation and uninstallation sections, and other sections discussed in [RB 2000-10-07]. Removed parts specific to Ravenbrook Information System.
2000-10-16 RB Merged with master sources and GDR's demonstration instructions for version 0.2. More edits required to make this consistent with the master sources.
2000-10-19 GDR Updated to fix defects in release 0.3.1 [GDR 2000-10-17a] and release 0.3.2 [RB 2000-10-18b].
2000-11-25 LMB Removed "system" from title. Made lots of minor formatting and transition edits. Moved Glossary to end of document. Reorganized Section 4.
2000-11-26 RB Improved prerequisites section. Added draft Bugzilla prerequisites. Formatted troubleshooting section. Updated version 0.3 references to version 0.4.
2000-11-27 RB Added readership. Removed some false statements.
2000-11-29 GDR Revised section 5 (configuration) to explain how to use the automatic configuration engine for TeamTrack. Moved material from sections 4 and 5 to make an appendix E for advanced configuration. Added section 4.6, a placeholder that will describe how to create a Perforce user for the replicator. The integration with TeamTrack now requires Python 2.0.
2000-11-29 RB Corrected overview and improved replicator diagram. Changed prerequisites to point at Perforce 2000.2 beta release. Added proper text to Bugzilla prerequisites section. Cross-referenced to User's Guide.
2000-11-29 LMB Changed "—" to "--" because the former doesn't display properly in Netscape. Made some minor edits in Sections 1-3.
2000-11-30 LMB Corrected figure numbers in the text that were off by one. Finished editing the AG. Swapped round Sections D and E. Searched the doc for "dfn" tags and incorporated those terms into the glossary. Deleted the list in Section 4.1 and folded its single entry into the preceding sentence. Added a short note to Section 4.4 to the effect that if you're using IIS, you don't need to stop and restart the TeamTrack server. Added a note to Section 4.6 that we need to tell admins to make the P4DTI user a Perforce super user and add it to the "p4 protect" table if they're using it.
2000-11-30 RB Added instructions to upgrade users Perforce clients and to stop using TeamShare SourceBridge. Told the administrator to check the Windows event log when things go wrong, because the TeamShare API doesn't tell the replicator about errors.
2000-11-30 GDR Added comments to the example jobspec in section D.2, and fixed the formatting. Added note saying that you may not have a field called "code". Listed the TeamTrack workflows that won't work well. Wrote advice on how to configure the integration. Added the changelist_url configuration parameter.
2000-12-01 RB Moved TeamTrack and Bugzilla configuration sections into the Configuration chapter, after the P4DTI configuration instructions. Added basic Linux installation instructions. Rewrote sections of the configuration instructions to go with the new flow. Deleted section on switching TeamTrack databases. Updated registry editing and Team Track privilege instructions. Added instructions for creating a Perforce user for the replicator. Explained multiple transition limitation. Updated screenshots.
2000-12-04 GDR Made list of configuration parameters in section 5.2 consistent with the configuration file (by alphabetizing both lists). Added missing configuration parameter closed_state. Added note in section 5.2 about checking the configuration.
2000-12-05 RB Changed figures to use "div" tags in line with the user manual and to allow more flexible use of material in figures. Added basic notes on Bugzilla configuration (more to come).
2000-12-06 RB Added section 2.3 about supported platform configurations.
2000-12-07 GDR Advised admin to make e-mail addresses or userids the same in TeamTrack and Perforce. Advised admin to restart when users are added or changed.
2000-12-07 RB Removed "TeamTrack only" notice from "replicated_fields" configuration parameter heading.
2000-12-08 GDR Documented translation of "ignore" state. Improved advice about what to do with a field called "code". Fixed table of contents.
2000-12-08 GDR Documented refresh_perforce.py.
2000-12-08 GDR Documented translation of "ignore" state. Improved advice about what to do with a field called "code". Fixed table of contents.
2000-12-08 GDR Documented refresh_perforce.py.
2000-12-08 RB Brought configuration section 5.2 up to date with Bugzilla configurator (see job000115).
2000-12-08 RB Updated to match unified configuration file and related re-organization of sources.
2000-12-11 GDR Noted that the changelist_url configuration parameter must be suitable for passing to sprintf().
2000-12-13 RB Updated for version 0.5 to cover Bugzilla supported platforms, configurations, and known issues. Added changelist_url for use with P4Web.
2000-12-13 RB Moving the Python 1.5.2 sources and Linux RPM to the project imports.
2000-12-15 NB Added verbose configuration item.
2000-12-15 NB Added more chat about bugzilla_user.
2000-12-15 NB More about e-mail addresses, python script names, and deleting jobs.
2000-12-22 LMB Started improving the manual as agreed in e-mail from RB (Documentation preparation meeting with LMB, 2000-12-20).
2001-01-01 LMB Continued improving the manual as agreed in e-mail from RB, modulo deleting things (Documentation preparation meeting with LMB, 2000-12-20). Removed spaces around em-dashes as per "Read Me First!"
2001-01-02 GDR The recommendation for administrator experience (section 3) is more realistic. Moved text from Appendix D to the Integrator's Guide, and replaced with a reference. Replaced "company.com" with "company.domain" since the former exists. Fixed typos and improved wording to fix defects recorded in [GDR 2000-12-08b], [GDR 2000-12-08c], and [GDR 2000-12-09]. Made cross-references consistent. Added two error messages to section 13.2. Added figures 5 and 6 showing example log output. Added section 5.4.3 about providing field descriptions.
2001-01-02 LMB Merged GDR's changes to master manuals with this branch. Got about two-thirds of the way through a heavy copyedit.
2001-01-03 LMB Made some changes suggested by GDR. Finished copyedit; noticed a number of things I didn't catch in the copyedit, so I'm sure there are other problems. Verified links. Indicated which comments I thought had been dealt with, in case GDR has time to work on this document tomorrow. Did a once-over in IE5 to make sure I didn't break anything too badly in the last two days.
2001-01-05 LMB Dealt with about half of the changes that TC@perforce suggested.
2001-01-06 LMB Procedurized and listed everything, as per TC@perforce's suggestions.
2001-01-07 LMB Edited references. Replaced Section 5.3.3.
2001-01-07 LMB Removed extraneous title material and Sections A and B. Removed comments and sent them in an e-mail to p4dti-staff. Did final copyedit and finished prepping manual to send to TC@perforce.
2001-01-20 LMB Incorporated TC's handwritten edits. Cut lots of stuff out of the glossary.
2001-01-21 LMB Re-added author, date, and other title material, and Sections A and B. Added comments on what I'd been doing to the manual in the interim (not much). Edited some new material from GDR. As per GDR's e-mail of 2001-01-18, point 5, deleted Section C and moved the material in Section D to Section 5.3.3. Fixed XREFS to Section 5; checked XREFS to Sections 12, 13, C, and D. Added material on when you might want to refresh jobs. Edited Section 10 slightly. Checked that procedure lead-ins and lists meet TC's specifications. Copied in Nick's changes to the info on patching Bugzilla and to the closed_state and replicated_fields parameters. Deleted mentions of bugzilla_user. Corrected internal XREFS. Copied over information on log files from master sources. Ran the spelling checker.
2001-01-22 LMB As per TC@perforce's request and GDR's instructions, added menu command for how to start the TeamTrack Administrator from Windows. Added upgrade instructions to Section 4.
2001-01-29 NB Added bugzilla_directory configuration parameter.
2001-02-01 RB Updated references to Perforce manuals to version 2000.2. Added steps to section 10, "Uninstalling the P4DTI", to undo all installation steps. Added missing information to section 9, "Maintaining the P4DTI", and clarified some of the existing instructions.
2001-02-02 RB Implemented paper review comments of 2001-01-25 by TC@perforce.
2001-02-12 GDR Added start_date configuration parameter. Renamed refresh_perforce.py to refresh.py.
2001-02-13 GDR Added note about security of jobs. Added socket.error error message to section 11.2. Alphabetized messages in section 11.2. Added note about "localhost" not working as a value for the teamtrack_server configuration parameter. Indicated that administrator_address and smtp_server can be None.
2001-02-14 RB Added Linux RPM instructions.
2001-02-15 RB Fixed "zcat" to "gunzip -c" to fool-proof unpacking.
2001-02-16 RB Added brief instructions for starting the P4DTI automatically.
2001-02-16 NB Added section 6.1, on migrating sets of issues. Also add some poll_period and start_date references.
2001-02-21 GDR Documented p4dti.reg in section 5.3.1.
2001-02-22 NB Documented MySQLdb and MySQL versions in section 3.4.1.
2001-02-22 GDR Gave instructions in section 11.1 on identifying the release that you're using. Added "Can't create a new user - over licence quota" to error messages in section 11.2. Wrote section 6.2 on migrating from Perforce jobs.
2001-02-26 NB Added Bugzilla-related errors to section 11.2.
2001-02-27 GDR Alphabetized the list of error messages in section 11.2. Gave full error messages, including prefixes, for each error. Improved error descriptions.
2001-03-02 RB Added missing contents entries. Fixed some HTML errors and tidied up some other HTML. Transferred copyright to Perforce under their license. Added section on advanced configuration.
2001-03-02 GDR Removed section 9.3 on tracking down TeamTrack errors section, since it's redundant with section 11.2.
2001-03-05 RB Added e-mail messages to the list of things we'd like in bug reports. Added some missing "abbr" tags.
2001-03-13 GDR Added message ids to the messages in section 11.2; moved messages without ids in section 11.3. Added some missing error messages. Removed verbose parameter; added log_level parameter. Alphabetized section 5.1.
2001-03-16 GDR Changed "daemon licence" to "background user licence" for consistency with Perforce's own terminology. Background user licences are available from Perforce Customer Service, not Technical Support.
2001-03-16 GDR Added text for messages 105-117, 200-209, 314, 315.
2001-04-11 RB Updated version to 1.1.
2001-04-20 RB Fixed reference to Bugzilla download at info.ravenbrook.com to point to www.ravenbrook.com.
2001-05-17 GDR Removed occurrences of messages 844-847, 607-612 from example replicator output (not produced any more).
2001-05-23 GDR Provided link to online support information.
2001-05-24 NB Updated for Bugzilla 2.12.
2001-07-03 GDR Added teamtrack_version configuration parameter. Added error messages from the TeamTrack 5.0 API and error message from the TeamTrack 4.5 API when connecting to a TeamTrack 5.0 server.
2001-07-09 GDR Updated TeamTrack screen shots to version 5.0.
2001-07-09 GDR RPM users should use the stop script to stop the replicator.
2001-07-09 NB Added job_url config parameter.
2001-07-14 GDR Updated references to Perforce manuals to 2001.1, since we now support that version.
2001-07-15 GDR Explained how to set up an integration without being connected to a network.
2001-07-17 GDR Added more error messages to troubleshooting section.
2001-07-24 GDR The P4DTI doesn't support TeamTrack on a secure web server. Added more troubleshooting advice for TeamTrack errors.
2001-07-25 NB Changed restarting instructions: Bugzilla users don't need to restart the replicator when adding a new user.
2001-07-25 GDR The replicator user needs submit, update and transition privileges in TeamTrack 5.0.
2001-07-28 GDR Reordered section 5.1 so that configuration parameters appear in the same order as in config.py.
2001-07-31 GDR Added error from incompatibility between Perforce client and server.
2001-08-07 GDR No need to restart the TeamTrack integration when you add a user.
2001-09-03 NB Added Bugzilla 2.14.
2001-09-12 GDR Added use_windows_event_log configuration parameter and prerequisite.
2001-09-13 GDR Added TeamTrack error message "SOCKET_READ_ERROR: Authentication Failed. No user information." to troubleshooting section.
2001-09-26 GDR Added section on limitations of the P4DTI.
2001-10-04 GDR Improved description of workflows that don't work well with the P4DTI. Added table of supported field types.
2001-10-07 GDR Added use_perforce_jobnames parameter.
2001-10-18 GDR Added troubleshooting advice for messages 123, 127, 615, 618, and 619.
2001-09-23 GDR Added new command poll.py and table of commands.
2001-10-25 NB Improved information on supported MySQLdb releases. Added troubleshooting advice for messages 1005 and 1006.
2001-11-05 GDR Added section on replicating new jobs from Perforce to the defect tracker.
2001-11-08 NDL Added section 5.6.2, on running as an NT service; cleaned up sections 5.5 and 5.6.
2001-11-14 GDR Moved material requiring Python programming or knowledge of defect tracker schema to the Advanced Administrator's Guide.
2001-11-19 NDL Message 891 becomes more general. Document message 1017.
2001-11-22 GDR Documented use_deleted_selections configuration parameter and associated error messages.
2001-11-22 RB Cross-referenced sections on deleting Perforce jobs to the migration section of the AAG.
2001-11-27 GDR Documented a processmail-related error message that can come up when migrating if you haven't applied the Bugzilla patch.
2001-12-03 GDR Added remaining error messages to section 11.
2002-01-24 GDR Noted support for Bugzilla's "emailsuffix" feature.
2002-01-31 GDR Documented the supported MySQLdb versions. Changed MySQLdb link from release 0.3.0 to release 0.9.1.
2002-01-31 NB Added Bugzilla 2.14.1.
2002-02-01 GDR Noted support for TeamTrack 5.5.
2002-03-14 NB Removed support for TeamTrack 5.02.
2002-04-08 NB Add _accessible fields to the Bugzilla fields table.
2002-04-09 NB Remove extraneous paragraph close tag.
2002-05-06 Ram Added windows notes for Bugzilla software prerequisites.
2002-06-26 RB Merged Parrus Technologies' Bugzilla for Windows port into Ravenbrook sources.
2002-10-04 NB Add recent Bugzilla releases, and deprecate old defect tracker releases.
2002-10-25 RB Brought cross references to manuals and Bugzilla documentation up to date.

C. Glossary

changelist An atomic change transaction in Perforce.
background user license
daemon license
A license for a process rather than a person.
fix A link between a job and a changelist.
issue A unit of work tracked by the defect tracker, for example, a bug, a change request, or an enhancement request.
job A unit of work tracked by Perforce.
replicator A process that copies (replicates) data between a defect tracker and a Perforce server in order to keep each one up to date with changes made in the other. Replication allows developers to do their routine defect resolution work entirely from their Perforce client, without needing to use the defect tracker's interface. It also allows developers to relate their changes to defect tracking issues.
workflow A set of rules that control who can do what to which issues.

D. Table of commands

Command Description Reference
python check.py Check that the defect tracker database is consistent with the Perforce jobs and fixes, and report any inconsistencies. 7.3
python check_jobs.py Check that Perforce jobs are consistent with the Perforce jobspec. [GDR 2001-11-14, 4.5]
python migrate.py Migrate Perforce jobs to defect tracker issues. [GDR 2001-11-14, 4.10]
python migrate_users.py Create defect tracker users corresponding to Perforce users. [GDR 2001-11-14, 4.4]
python poll.py Poll the defect tracker and Perforce for changes, replicate those changes, then stop. 7.1
python refresh.py Delete all jobs and fixes in Perforce, then copy all the replicated issues from the defect tracker again. For use when you change the replicated_fields (for Bugzilla or TeamTrack) or start_date configuration parameters. 9.2
python run.py Run the P4DTI replicator. 5.5
python service.py [argument] Manage the P4DTI replicator as a Windows NT Service. With no argument, installs the service. Otherwise specify one of: start, stop or remove. 5.6.2
python teamtrack_query.py Query the TeamTrack database. [GDR 2001-11-14, 6]

This document is copyright © 2001 Perforce Software, Inc. All rights reserved.

Redistribution and use of this document in any form, with or without modification, is permitted provided that redistributions of this document retain the above copyright notice, this condition and the following disclaimer.

This document is provided by the copyright holders and contributors "as is" and any express or implied warranties, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose are disclaimed. In no event shall the copyright holders and contributors be liable for any direct, indirect, incidental, special, exemplary, or consequential damages (including, but not limited to, procurement of substitute goods or services; loss of use, data, or profits; or business interruption) however caused and on any theory of liability, whether in contract, strict liability, or tort (including negligence or otherwise) arising in any way out of the use of this document, even if advised of the possibility of such damage.
